System Selector

The System Selector below will help you choose the correct system. Simply tick the boxes that apply to your situation and click "Search Systems".
You can also use this page to create your own Firestopping Specification. To see how go to Specification Instructions
If you want to restrict your search to a particular product, click your choice from the "Product" dropdown menu.
If you know the identification number (FCxxx) of the system(s) you want then simply type them into the "System ID" box (separate by commas for multiple numbers) and click "Search Systems".
For an Excel spreadsheet version of all systems, click here for a list of systems

Protecta FR Acrylic Plasterboard Gap 1

System ID FC110

Linear joint seals for single-layer plasterboard walls. Between head of wall and soffit of concrete floor (up to 25mm gap) or between vertical end of wall and concrete wall (up to 15mm gap). Protecta FR Acrylic Sealant to depth 12.5mm. Zero smoke leakage up to 200Pa. Max FRR -/60/45

Protecta FR Acrylic Plasterboard Gap 1-2

System ID FC506

Linear joint seals for plasterboard walls. Between head of wall and soffit of concrete floor (up to 25mm gap) or between vertical end of wall and concrete wall (up to 15mm gap). Protecta FR Acrylic Sealant to depth 12.5mm. Zero smoke leakage up to 200Pa. Max FRR -/90/90

Protecta FR Acrylic Plasterboard Gap 2

System ID FC296

Linear joint seals for double-layer plasterboard walls. Between head of wall and soffit of concrete floor (up to 30mm gap) or vertical end of wall and concrete wall (up to 30mm gap). Protecta FR Acrylic Sealant depth 12.5mm backed by 12.5mm mineral wool or Protecta FR Acrylic Sealant to the full depth of 25mm. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Plasterboard Gap No Stud

System ID FC507

Linear joint seals between vertical end of wall and concrete wall with no stud backing (up to 30mm gap). Protecta FR Acrylic Sealant depth 12.5mm backed by 20mm mineral wool. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Plasterboard to Steel Beam

System ID FC508

Linear joint seals for plasterboard or concrete walls between head of wall and steel substrate above (up to 30mm gap). Protecta FR Acrylic Sealant depth 12.5mm backed by 12.5mm mineral wool or Protecta FR Acrylic Sealant to the full depth of 25mm. Zero smoke leakage up to 200Pa. Max FRR -/120/60 (seal only - thermal rating of system determined by rating of steel)

Protecta FR Acrylic Steel Beam through Wall

System ID FC551

Linear joint seals for plasterboard or concrete walls between head of wall and steel beam penetrating wall (up to 30mm gap). Protecta FR Acrylic Sealant depth 12.5mm backed by 12.5mm mineral wool or Protecta FR Acrylic Sealant to the full depth of 25mm. Max FRR -/120/60

Protecta FR Acrylic Plasterboard to Steel Column

System ID FC510

Linear joint seals for plasterboard or concrete walls between end of wall and steel column or substrate (up to 30mm gap). Protecta FR Acrylic Sealant depth 12.5mm backed by 12.5mm mineral wool or Protecta FR Acrylic Sealant to the full depth of 25mm. Zero smoke leakage up to 200Pa. Max FRR -/120/60 (seal only - thermal rating of system determined by thermal rating of the steel)

Protecta FR Acrylic Concrete to Steel Framing

System ID FC563

Linear joint seals for plasterboard or concrete walls between wall and steel framing (such as fire doors) (up to 30mm gap). Protecta FR Acrylic Sealant depth 12.5mm backed by 12.5mm mineral wool or Protecta FR Acrylic Sealant to the full depth of 25mm. Zero smoke leakage up to 200Pa. Max FRR -/120/60

Protecta FR Acrylic Plasterboard to Ceiling

System ID FC509

Linear joint seals for plasterboard or concrete walls between head of wall and plasterboard ceiling above (up to 30mm gap). Protecta FR Acrylic Sealant depth 12.5mm backed by 12.5mm mineral wool or Protecta FR Acrylic Sealant to the full depth of 25mm. Max FRR -/120/60

Protecta FR Acrylic Gaps to Timber

System ID FC470

Linear joint seals between plasterboard or concrete walls and timber walls or floors, including single-sided seals. Protecta FR Acrylic Sealant 12.5mm backed by 12.5mm mineral wool (or simply fill with 25mm Acrylic sealant). Joint width up to 30mm. Ideal for sealing to timber floors or beams. Zero smoke leakage up to 200Pa. Max FRR -/90/60

Protecta FR Acrylic Gap Steel to Steel

System ID FC472

Linear joint seals between steel substrates (beams, columns, etc) in plasterboard or concrete walls. Protecta FR Acrylic Sealant 12.5mm backed by 12.5mm mineral wool (or simply fill with 25mm Acrylic sealant). Joint width up to 30mm. Thermal rating dependent on rating of steel. Zero smoke leakage up to 200Pa. Max FRR -/120/30

Protecta FR Acrylic Concrete Wall Gap 2-S

System ID FC322

Joint seal between wall elements or between wall and soffit of floor. Protecta FR Acrylic sealant 15mm to each side with 20mm stone wool backing. Joint width up to 30mm. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Tilt Slab Wall Gap

System ID FC539

Joint seal between tilt slab wall elements. Protecta FR Acrylic sealant single-sided or double-sided options. Joint width up to 50mm. Internal use only. Max FRR -/240/240

Protecta FR Acrylic Concrete Floor Gap 1-S

System ID FC112

Linear joint seal between 100mm concrete/AAC floor slabs or gap seal between slab and wall. Protecta FR Acrylic Sealant depth 25mm backed with mineral wool. Joint width up to 100mm. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Wall Gap 1-S

System ID FC111

Joint seal between wall elements or between wall and soffit of floor. Protecta FR Acrylic sealant to one side. Joint width up to 50mm. Zero smoke leakage up to 200Pa. Max FRR -/240/120

Protecta FR Acrylic Concrete Floor Gap 2-S

System ID FC323

Linear joint seal between 100mm concrete/AAC floor slabs or gap seal between slab and wall. Protecta FR Acrylic Sealant depth 15mm both sides with mineral wool backing. Joint width up to 100mm. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Floor Steel to Steel Gap

System ID FC412

Linear gap seal between 100mm concrete/AAC floor slabs lined with steel or aluminium. Protecta FR Acrylic Sealant depth 25mm (top) or 15mm (both sides) backed with mineral wool. Joint width up to 30mm. Zero smoke leakage up to 200Pa. Max FRR -/240/120 (but note thermal rating will depend on the thermal rating of the steel or aluminium).

Protecta FR Acrylic Concrete Wall Blank Seal

System ID FC259

Blank seal in concrete wall from 75mm. Protecta FR Acrylic 12.5mm to 25mm single and double-sided. Aperture up to 300 x 300mm. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Wall Electrical Cable 1-S

System ID FC113

Electrical cable (single, up to 21mm diam) through a concrete wall. Protecta FR Acrylic Sealant depth 25mm. Max 300x300mm. Annular space min 7mm. Fire from both directions. Zero smoke leakage up to 200Pa. Max FRR -/240/120

Protecta FR Acrylic Concrete Wall Cables 2-S

System ID FC114

Cables (single up to 80mm, bundles up to 100mm) through a 100mm concrete wall. Protecta FR Acrylic Sealant depth from 12.5mm. Max 300x300mm. Annular min 10mm. Separation between cables or bundles 10mm. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Wall Metal Pipe CI 1-S

System ID FC116

Metal or alupex pipe (single, insulated, interrupted) through a concrete wall (steel to 219mmm, copper to 54mm, alupex to 75mm). Protecta FR Acrylic 25mm any position. Fire from both directions. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Wall Metal Pipe CS 1-S

System ID FC278

Metallic pipe (single, insulated, continuous, steel up to 324mm) through a concrete wall. Protecta FR Acrylic 25mm any position with mineral wool backing. Fire from both directions. Max 300x300mm or 504mm diam. Annular min 10mm. Separation min 30mm between seals. Zero smoke leakage up to 200Pa. Max FRR -/180/180

Protecta FR Acrylic Concrete Wall Metal Pipe Bare 1-S

System ID FC328

Metal or alupex pipe (single, uninsulated) through a concrete wall (steel to 219mm, copper to 54mm, alupex to 75mm). Protecta FR Acrylic 25mm any position. Fire from both directions. Zero smoke leakage up to 200Pa. Max FRR -/240/-

Protecta FR Acrylic Concrete Wall Metal Pipe CI 2-S

System ID FC117

Metal or Alupex pipe (insulated, interrupted) through a concrete wall (steel to 219mm, copper to 54mm, Alupex to 75mm). Protecta FR Acrylic 12.5-25mm both sides with stone wool backing. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Wall Metal Pipe CS 2-S

System ID FC279

Metallic pipes (single, insulated, continuous, steel up to 324mm, copper up to 54mm, Alupex up to 75mm) through a 100mm concrete wall. Protecta FR Acrylic 12.5-15mm to both sides of wall with stone wool backing. Max 300x300mm or 300mm diam. Annular min 10mm. Separation min 30mm between seals. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Wall Metal Pipe Bare 2-S

System ID FC327

Metal or alupex pipe (uninsulated) through a concrete wall (steel to 219mm, copper to 54mm, Alupex to 75mm). Protecta FR Acrylic 12.5-15mm both sides with stone wool backing. Zero smoke leakage up to 200Pa. Max FRR -/240/120

Protecta FR Acrylic Concrete Wall Metal Combustible

System ID FC324

Metal pipes with continuous combustible (elastomeric) or non-combustible insulation (Steel up to 273mm, Copper to 54mm, Alupex to 75mm) through a 100mm concrete, AAC or masonry wall. Protecta FR Acrylic 25mm to both sides of wall. Max 300x300mm or 300mm diam. Annular min 10mm. Separation min 30mm between seals. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Concrete Wall Plastic Pipe 2-S

System ID FC325

Plastic pipes (single, PVC-U, PVC-C, PE, PE-HD, PEX, PP, PP-R up to 32mm) through a concrete wall from 100mm. Protecta FR Acrylic 25mm to both sides of wall. Max 300x300mm or 300mm diam. Annular min 10mm. Separation min 30mm between seals. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Wall Conduit

System ID FC467

Conduit, flexible or rigid, (PVC, PP or PE, up to 40mm) through a 100mm concrete wall, fully or partially filled with cables (electrical, data or fibre optic) up to 21mm diam. Protecta FR Acrylic 25mm to both sides of wall. Annular space min 10mm, max 30mm. Separation min 30mm between seals. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic 13mm Plasterboard Blank

System ID FC329

Blank seal in single-layer 13mm plasterboard wall. Protecta FR Acrylic 13mm each side of wall. Rating -/60/60 up to 150 x 150mm or equivalent. Backing may be any material to hold sealant in place. No cavity insulation required. Zero smoke leakage up to 200Pa. Max FRR -/60/60

Protecta FR Acrylic 13mm Plasterboard Cables

System ID FC174

Cables up to 21mm diam (electrical, data or fibre optic) single or bundled up to 100mm through single-layer 13mm plasterboard wall. Protecta FR Acrylic Sealant depth 12.5mm both sides of wall. No backing. Zero smoke leakage up to 200Pa. Max FRR -/60/45

Protecta FR Acrylic 13mm Plasterboard Conduit

System ID FC469

Conduit (PVC, PE or PP) up to 32mm through a single-layer 13mm plasterboard wall, partially or completely filled with cables (electrical, data or fibre optic) up to 21mm diam. Protecta FR Acrylic Sealant depth 12.5mm both sides of wall. Annular space 10-30mm. No backing required. Zero smoke leakage up to 200Pa. Max FRR -/60/45

Protecta FR Acrylic 13mm Plasterboard Plastic Pipe

System ID FC418

Plastic pipe up to 32mm (PVC, PE, PE-HD, PP, PEX, PP-R, etc) through a single layer 13mm plasterboard wall, Protecta FR Acrylic Sealant depth 13mm both sides of wall. No backing required. Zero smoke leakage up to 200Pa. Max FRR -/30/30

Protecta FR Acrylic Plasterboard Cables Single Side

System ID FC341

Cables up to 21mm (power, data or fibre optic) single or bundled through one side only of single-layer 13mm plasterboard wall. Protecta FR Acrylic Sealant to depth 12.5mm. No backing. Zero smoke leakage up to 200Pa. Max FRR -/60/45

Protecta FR Acrylic 13mm Plasterboard Pipe Bare

System ID FC330

Metal Pipe (steel to 22m, bare) through single-layer 13mm plasterboard wall. Protecta FR Acrylic Sealant depth 12.5mm both sides of wall. No backing. Zero smoke leakage up to 200Pa. Max FRR -/60/30

Protecta FR Acrylic 13mm Plasterboard Pipe CS

System ID FC331

Steel pipe up to 324mm with continuous insulation through 13mm single-layer plasterboard wall. Protecta FR Acrylic Sealant depth 12.5mm both sides of wall. No backing. Zero smoke leakage up to 200Pa. Max FRR -/60/45

Protecta FR Acrylic Plasterboard Wall Blank

System ID FC261

Blank seal in plasterboard wall. Protecta FR Acrylic to 12.5mm each side of wall backed with 20mm stone wool. Aperture up to 300 x 300mm or equivalent. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Plasterboard Wall Cables

System ID FC118

Cables (electrical, fibre optic, data) single or bundles up to 100mm diam through a plasterboard wall. Protecta FR Acrylic Sealant depth 12.5 to 25mm both sides. Max aperture size 300x300mm or equivalent. Cables up to 21mm also approved for penetrations in linear gap seals. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Plasterboard Wall Conduit

System ID FC468

Conduit, flexible or rigid, (PVC, PE or PP) up to 40mm through a plasterboard wall, partially or completely filled with cables (electrical, fibre optic, data) up to 21mm diam. Protecta FR Acrylic Sealant depth 25mm both sides. Annular space 10-30mm. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Plasterboard Wall Metal Pipe Insulated

System ID FC119

Metallic pipe with continuous non-combustible insulation (Steel to 324mm, Copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Acrylic Sealant depth min 12.5mm both sides backed with stone wool (or just 25mm Acrylic). Max hole size 300x300mm. Annular min 10mm. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Plasterboard Wall Metal Pipe CI

System ID FC121

Metal pipe (Steel to 219mm, Copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Acrylic Sealant depth 12.5mm both sides with stone wool backing. Max aperture 300x300mm. Annular space min 10mm. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Plasterboard Wall Combustible Insulation

System ID FC365

Metallic pipe with elastomeric combustible insulation or non-combustible insulation (steel up to 165mm diam, copper to 54mm, alupex to 75mm) through a plasterboard wall. Protecta FR Acrylic Sealant depth min 25mm both sides, some with mineral wool backing. Max hole size 300x300mm. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Plasterboard Wall Metal Pipe Bare

System ID FC333

Bare metal pipe (Steel to 219mm, Copper to 54mm, Alupex to 75mm diam) through a plasterboard wall. Protecta FR Acrylic Sealant depth 12.5mm both sides with stone wool backing. Max aperture 300x300mm. Annular space min 10mm. Zero smoke leakage up to 200Pa. Max FRR -/120/-

Protecta FR Acrylic Plasterboard Wall Plastic Pipe

System ID FC618

Plastic pipe up to 32mm (PVC, PE, PE-HD, PP, PEX, PP-R, etc) through a plasterboard wall, Protecta FR Acrylic Sealant depth 25mm both sides of wall. No backing required. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Timber Wall Blank Seal

System ID FC135

Blank seal up to 180mm diam in 100mm solid timber or CLT wall. Acrylic sealant 25mm to each side of wall backed with 25mm stone or mineral wool. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Timber Wall Cables

System ID FC136

Cables up to 50mm diam (electrical, data or fibre optic) single or bundles up to 100mm through a 100mm solid timber or CLT wall. Protecta FR Acrylic Sealant 25mm each side backed with mineral wool. Zero smoke leakage up to 200Pa. Max FRR -/90/90

Protecta FR Acrylic Timber Wall Metal Pipe Interrupted Insulation

System ID FC137

Metal pipes (Steel to 273mm, Copper to 54mm, Alupex to 75mm) with interrupted insulation through a 100mm solid timber or CLT wall. FR Acrylic 25mm each side backed with stone wool. Max aperture 293mm (steel) or 180mm (copper/alupex). Zero smoke leakage up to 200Pa. Max FRR -/90/90

Protecta FR Acrylic Timber Wall Metal Pipes Bare

System ID FC314

Metal pipes (Steel to 273mm, Copper to 54mm, Alupex to 75mm) with no insulation through a 100mm solid timber or CLT wall. FR Acrylic 25mm each side backed with stone wool. Max aperture 293mm (steel) or 180mm (copper/alupex). Zero smoke leakage up to 200Pa. Max FRR -/90/-

Protecta FR Acrylic Timber Wall metal Pipe Combustible Insulation

System ID FC109

Metallic pipe with elastomeric combustible insulation or non-combustible insulation (steel up to 114mm diam, copper to 54mm, alupex to 75mm) through a 100mm solid timber or CLT wall. Protecta FR Acrylic Sealant depth min 25mm both sides with mineral wool backing. Annular space 10-30mm. Zero smoke leakage up to 200Pa. Max FRR -/60/45

Protecta FR Acrylic Timber Wall Plastic Pipe

System ID FC108

Plastic pipe up to 32mm (PVC, PE, PE-HD, PP, PEX, PP-R, etc) through a 100mm solid timber or CLT, Protecta FR Acrylic sealant depth 25mm both sides of wall with mineral wool backing. Zero smoke leakage up to 200Pa. Max FRR -/90/90

Protecta FR Acrylic Concrete Floor Blank

System ID FC262

Blank seal up to 300mm x 300mm in 100mm concrete floor. Protecta FR Acrylic to top side of floor or top and bottom for higher rating. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Floor Cable1-S

System ID FC123

Single cable (electrical, dats, fibre optic) up to 21mm diam through a 100mm concrete/AAC floor. Protecta FR Acrylic Sealant depth 25mm one side only with mineral wool backing. Max hole size 300x300mm or 100mm linear joint. Zero smoke leakage up to 200Pa. Max FRR -/120/90

Protecta FR Acrylic Composite Floor Cable

System ID FC636

Single cable (electrical, dats, fibre optic) up to 21mm diam through a composite concrete/AAC floor (min topping 50mm). Protecta FR Acrylic Sealant depth 25mm one side only with mineral wool backing. Max hole size 300x300mm or 100mm linear joint. Zero smoke leakage up to 200Pa. Max FRR -/120/90

Protecta FR Acrylic Concrete Floor Cable2-S

System ID FC124

Cables (all types of insulated electric cables with copper or aluminium core, fibre optic cables, communication cables) up to 80mm diam single or 100mm bundles) through a concrete floor min 100mm thick. Protecta FR Acrylic Sealant depth 15mm both sides. Max hole size 300x300mm. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Concrete Floor Conduit

System ID FC466

Conduit, flexible or rigid, (PVC, PE or PP) up to 40mm diam with or without cables (all types of insulated electric cables, fibre optic cables, communication cables, up to 21mm diam) through a concrete floor min 100mm thick. Protecta FR Acrylic Sealant depth 25mm both sides with 25mm stone wool backing. Min 10mm annular, max hole size 300x300mm. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Floor Plastic Pipe

System ID FC617

Plastic pipe (PVC, PE, HDPE, PEX, PP, PP-R, etc) through a concrete floor min 100mm thick. Protecta FR Acrylic Sealant depth 25mm both sides with 25mm stone wool backing. Min 10mm annular, max hole size 300x300mm. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Floor Metal Pipe CI 1-S

System ID FC125

Single insulated (interrupted) metallic pipe (copper up to 54mm, steel up to 219mm, alupex up to 75 diam) through a concrete floor min 100mm thick. Protecta FR Acrylic Sealant depth 15-25mm one side only or anywhere inbetween. Max aperture 300x300mm or 100mm linear gap. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Composite Floor Metal Pipe CI

System ID FC637

Single insulated (interrupted) metallic pipe (copper up to 54mm, steel up to 219mm, alupex up to 75 diam) through a composite floor. Protecta FR Acrylic Sealant depth 15-25mm with mineral wool backing. Max aperture 300x300mm or 100mm linear gap. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Floor Metal Pipe Bare 1-S

System ID FC335

Single bare metallic pipe (copper up to 54mm, steel up to 324mm, alupex up to 75mm diam) through a concrete floor min 100mm thick. Protecta FR Acrylic Sealant depth 15-25mm one side only or anywhere inbetween. Max aperture 300x300mm or 100mm linear gap. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Composite Floor Metal Pipe Bare

System ID FC638

Single bare metallic pipe (copper up to 54mm, steel up to 324mm, alupex up to 75mm diam) through a composite floor. Protecta FR Acrylic Sealant depth 15-25mm with stone wool backing. Max aperture 300x300mm or 100mm linear gap. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Concrete Floor Metal Pipe CS 1-S

System ID FC302

Metal pipe with continuous non-combustible insulation (Steel up to 324mm, Copper up to 54mm, Alupex up to 75mm diam) through a 100mm concrete floor. Protecta FR Acrylic Sealant depth 25mm with mineral wool backing to top of floor only. Max seal size 300 x 300mm. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Composite Floor Metal Pipe CS

System ID FC260

Metal pipe (Steel to 324mm, Copper to 54mm, Alupex to 75mm) through a composite floor min 73mm. Protecta FR Acrylic to 25mm backed with 48mm stone wool. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Floor Metal Pipe CI 2-S

System ID FC298

Single insulated (interrupted) metallic pipe (steel up to 219mm diam) through a 100mm concrete floor. Max aperture 300x300mm or 100mm linear gap. Protecta FR Acrylic Sealant depth 15mm both sides with stone wool backing. Zero smoke leakage up to 200Pa. Max FRR -/240/120

Protecta FR Acrylic Concrete Floor Metal Pipe Bare 2-S

System ID FC300

Single non-insulated metallic pipe (copper 54mm, steel 219mm) through a concrete floor down to 100mm. Protecta FR Acrylic Sealant depth 15-25mm both sides. Up to 300x300 seal size or 100mm linear gap.. Zero smoke leakage up to 200Pa. Max FRR -/240/240

Protecta FR Acrylic Concrete Floor Metal Pipe Combustible 2-S

System ID FC299

Single metallic pipe (steel up to 165mm, copper up to 54mm, alupex up to 75mm) with elastomeric or phenolic foam combustible insulation or any non-combustible insulation through a concrete/AAC floor min 100mm thick. Protecta FR Acrylic Sealant depth 25mm both sides with mineral wool backing. Zero smoke leakage up to 200Pa. Max FRR -/180/120

Protecta FR Acrylic Timber Floor Blank Seal

System ID FC413

Blank seal in a 150mm solid timber or CLT floor. Protecta FR Acrylic Sealant depth 25mm with 25mm stonewool backing. Max 220mm diameter. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Timber Floor Cables

System ID FC411

Cables (all types of insulated electric cables with copper or aluminium core, fibre optic cables, communication cables) up to 50mm diam single or 100mm bundles through a solid timber or CLT floor min 150mm thick. Protecta FR Acrylic Sealant depth 25mm both sides. Max hole size 220mm diameter. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Timber Floor Metal Pipe Interrupted

System ID FC414

Metal pipe (Steel to 273mm, Copper to 54mm, Alupex to 75mm) with interrupted insulation, through a 150mm solid timber or CLT floor. Protecta FR Acrylic 25mm top and bottom with mineral wool backing. Aperture up to 293mm diam. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Acrylic Timber Floor Metal Pipe Bare

System ID FC415

Bare metal pipe (Steel to 273mm, Copper to 54mm, Alupex to 75mm) through a 150mm solid timber or CLT floor. Protecta FR Acrylic 25mm top and bottom with mineral wool backing. Max aperture 293mm diam (steel) or 220mm diam (copper, alupex). Zero smoke leakage up to 200Pa. Max FRR -120/-

Protecta FR Acrylic Timber Floor Plastic Pipe

System ID FC416

Plastic pipes up to 32mm diam (PVC, PE, PE-HD, PEX, PP, PP-R, etc) through a 150mm solid timber or CLT floor. Protecta FR Acrylic Sealant depth 25mm top and bottom with mineral wool backing. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Collar Concrete Floor Blank

System ID FC443

Blank seal up to 160mm diameter in a concrete floor. Minimum floor thickness 100mm. Protecta collar fixed to underside of floor, with Protecta FR Acrylic sealant. Max FRR -/240/120

Protecta FR Collar Concrete Floor Plastic Pipe

System ID FC146

Combustible pipe up to 400mm (PVC, PP, PE, PEX, HDPE, PP-R, Acoustic, Aquatherm, etc) through a 100mm concrete floor. Protecta collar fixed to underside of floor, with Protecta FR Acrylic sealant. Oversize collars permitted. Zero smoke at 200Pa. Max FRR -/240/240

Protecta FR Collar Concrete Floor Plastic Pipe Top-fix

System ID FC444

Combustible pipe 32-160mm (PVC, PP, PEX, PE, PP-R, etc) through a 100mm concrete floor. Protecta collar fixed to top side of floor, with Protecta FR Acrylic sealant to top of collar only. No oversize collars permitted. Max FRR -/240/240

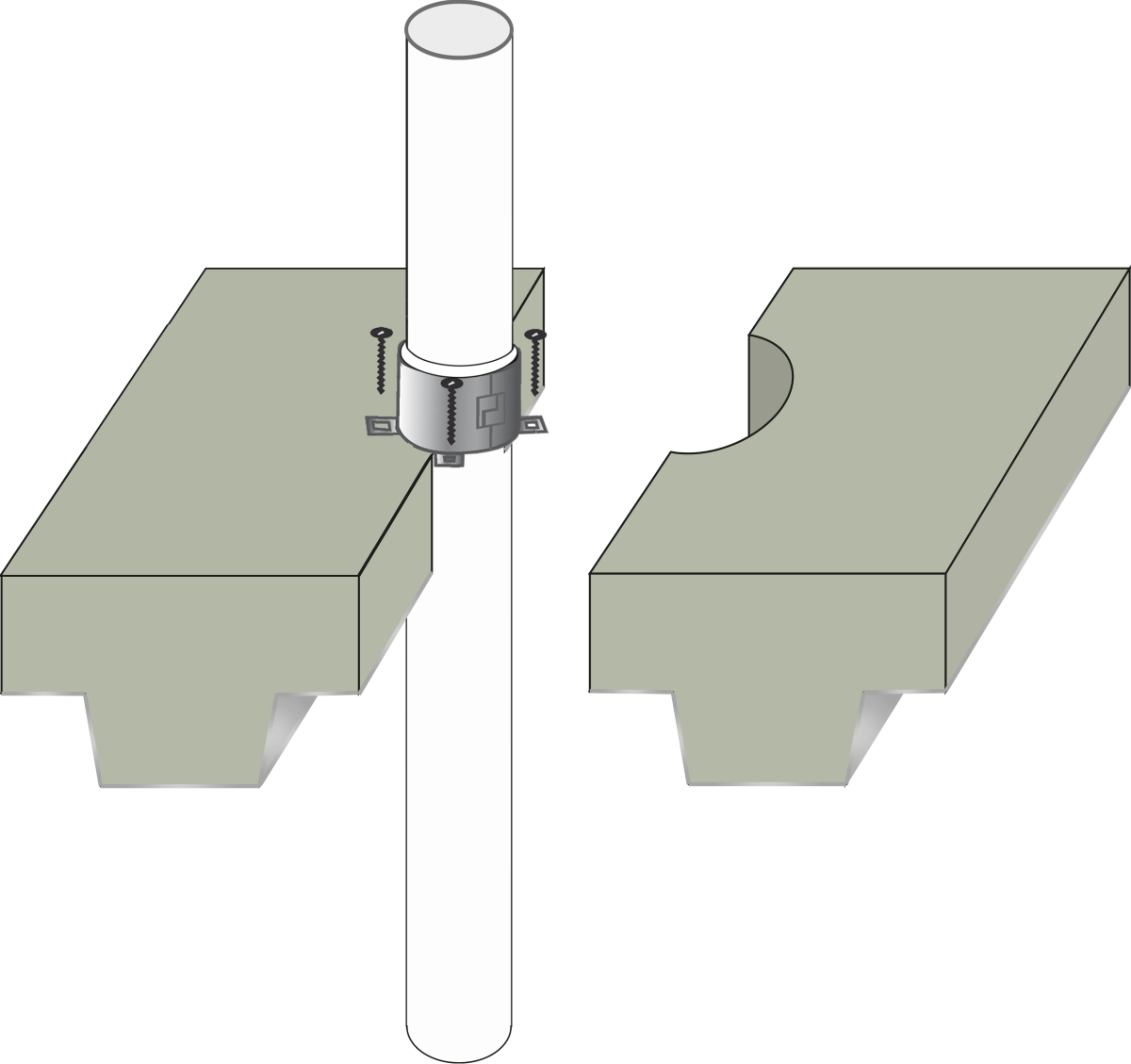

Protecta FR Collar Composite Floor Plastic Pipe

System ID FC438

Plastic pipes up to 160mm (PVC, PE, HDPE, PEX, PP, PP-R, etc) through a composite floor. Protecta FR Collar to top side only. No minimum topping required. Finish with bead of Protecta FR Acrylic sealant to top of collar. Max FRR -/240/240

Protecta FR Collar Concrete Floor Conduits

System ID FC440

Conduits (rigid or flexible up to 32mm) of PVC, PE, PEX single or in bundles up to 160mm diam through a 100mm concrete floor. Protecta collar fixed to underside of floor, with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa. Max FRR -/90/90

Protecta FR Collar Concrete Floor Cables

System ID FC442

Cable bundles up to 160mm (electrical, data or fibre optic) through a 100mm concrete floor. Protecta collar to underside of floor with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa with 10mm FR Acrylic. Max FRR -/180/180

Protecta FR Collar Concrete Floor Metal/Plastic Pipe Combustible/Non-combustible Insulation

System ID FC441

Insulated pipes (Copper or steel up to 54mm diam, Alupex to 75mm, PP/PE to 160mm) with combustible or non-combustible insulation through a 100mm concrete or AAC floor. Protecta collar to underside of floor with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa with 10mm FR Acrylic. Max FRR -/180/180

Protecta FR Collar Timber Floor Plastic Pipe

System ID FC147

Combustible pipe up to 400mm (PVC, PP, PE, PEX, HDPE, PP-R, Acoustic, Aquatherm, etc) through a 150mm solid timber or CLT floor. Protecta collar fixed to underside of floor, with Protecta FR Acrylic sealant top and bottom. Oversize collars permitted. Zero smoke leakage up to 200Pa. Max FRR -/240/240

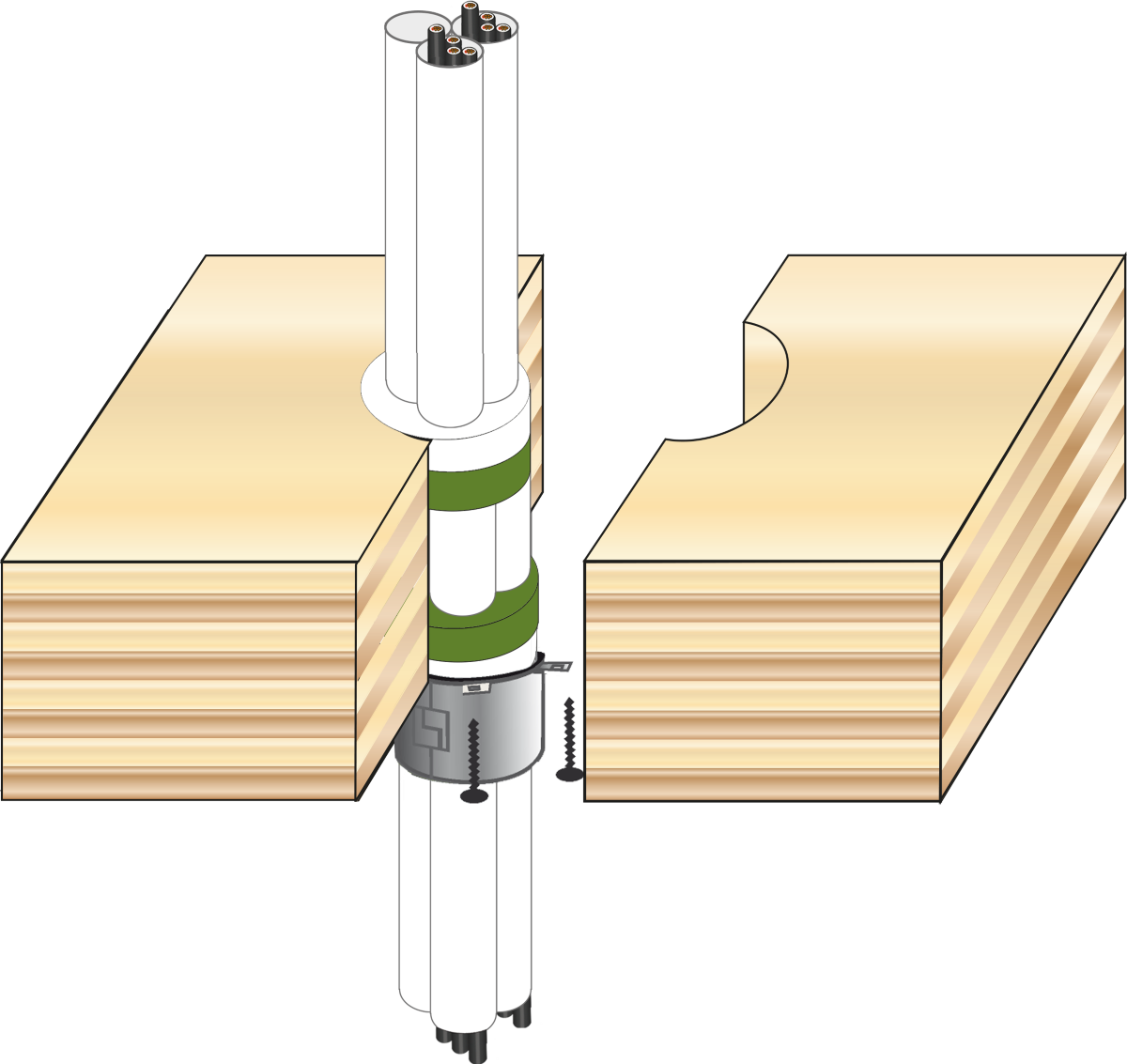

Protecta FR Collar Timber Floor Conduits

System ID FC439

Conduits (rigid or flexible up to 32mm) of PVC, PE, PEX single or in bundles up to 160mm diam through a 150mm solid timber or CLT floor. Protecta collar fixed to underside of floor, with Protecta FR Acrylic sealant top and bottom. Zero smoke leakage up to 200Pa. Max FRR -/90/90

Protecta FR Collar Timber Floor Cables

System ID FC595

Cable bundles up to 160mm (electrical, data or fibre optic) through a 150mm solid timber or CLT floor. Protecta collar to underside of floor with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa. Max FRR -/180/180

Protecta FR Collar Timber Floor Metal/Plastic Pipe Combustible/Non-combustible Insulation

System ID FC596

Insulated pipes (Copper or steel up to 54mm diam, Alupex to 75mm, PP/PE to 160mm) with combustible or non-combustible insulation through a 150mm solid timber or CLT floor. Protecta collar to underside of floor with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa. Max FRR -/180/180

Protecta FR Collar Single Layer Plasterboard Wall

System ID FC541

Combustible pipe 32-160mm (PVC, PE, HDPE, PEX, PP, PP-R, etc) through a single layer plasterboard wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Oversize collars permitted. Min wall 75mm. Zero smoke leakage up to 200Pa with 10mm FR Acrylic. Max FRR -/60/60

Protecta FR Collar Plasterboard Wall Plastic Pipe

System ID FC144

Combustible pipe 32-400mm (PVC-U, PVC-C, PE, HDPE, PEX, PP, PP-R, PP-MV etc) through a plasterboard wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Oversize collars permitted. Min wall thickness 100mm. Zero smoke leakage up to 200Pa with 10mm FR Acrylic. Max FRR -/120/120

Protecta FR Collar Pbd Wall Composite Pipe

System ID FC432

Low-noise waste pipes (mineral reinforced PP) and Aquatherm domestic water pipes (PP-R, PP-RP, PP-RCT) 32-160mm through a plasterboard wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Oversize collars permitted. Min wall 100mm. Zero smoke leakage up to 200Pa with 10mm FR Acrylic. Max FRR -/120/120

Protecta FR Collar Pbd Wall Plastic Pipe Bundles

System ID FC598

Plastic pipes up to 40mm of any type (PVC-C, PVC-U, PE, HDPE, PEX, PP, PP-R, PP-MV, PP-H) in mixed bundles up to 160mm through a 100mm plasterboard wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa with 10mm FR Acrylic. Max FRR -/90/90

Protecta FR Collar Pbd Wall Cables

System ID FC434

Cables, single or bundled, (electrical with copper or aluminium conductors, fibre optic or data) up to 160mm through a plasterboard wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Min wall 100mm. Zero smoke leakage up to 200Pa with 10mm FR Acrylic. Max FRR -/120/60

Protecta FR Collar Pbd Wall Conduits

System ID FC597

Conduits up to 40mm of any rigid or flexible plastic, single or bundled, with or without cables up to 21mm (electrical with copper or aluminium conductors, fibre optic or data) in mixed bundles up to 160mm through a 100mm plasterboard wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa with 10mm FR Acrylic. Max FRR -/90/90

Protecta FR Collar Pbd Wall Insulated Plastic Pipe

System ID FC599

PE or PP plastic pipes up to 160mm with combustible or non-combustible insulation through a plasterboard wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Min wall 100mm. Zero smoke leakage up to 200Pa with 10mm FR Acrylic. Max FRR -/120/120

Protecta FR Collar Pbd Wall Insulated Metal Pipe

System ID FC437

Steel or Copper pipes up to 54mm or Alupex pipes up to 75mm with combustible or non-combustible insulation through a plasterboard wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Min wall 100mm. Zero smoke leakage up to 200Pa with 10mm FR Acrylic. Max FRR -/120/90

Protecta FR Collar Timber Wall Plastic Pipe

System ID FC602

Combustible pipe 32-400mm (PVC-U, PVC-C, PE, HDPE, PEX, PP, PP-R, PP-MV etc) through a 100mm solid timber or CLT wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Oversize collars permitted. Min wall thickness 100mm. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Collar Timber Wall Composite Pipe

System ID FC603

Low-noise waste pipes (mineral reinforced PP) and Aquatherm domestic water pipes (PP-R, PP-RP, PP-RCT) 32-160mm through a 100mm solid timber or CLT wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Oversize collars permitted. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Collar Timber Wall Plastic Pipe Bundles

System ID FC604

Plastic pipes up to 40mm of any type (PVC-C, PVC-U, PE, HDPE, PEX, PP, PP-R, PP-MV, PP-H) in mixed bundles up to 160mm through a 100mm solid timber or CLT wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa. Max FRR -/90/90

Protecta FR Collar Timber Wall Cables

System ID FC605

Cables, single or bundled, (electrical with copper or aluminium conductors, fibre optic or data) up to 160mm through a 100mm solid timber or CLT wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Min wall 100mm. Zero smoke leakage up to 200Pa. Max FRR -/120/60

Protecta FR Collar Timber Wall Conduits

System ID FC606

Conduits up to 40mm of any rigid or flexible plastic, single or bundled, with or without cables up to 21mm (electrical with copper or aluminium conductors, fibre optic or data) in mixed bundles up to 160mm through a 100mm solid timber or CLT wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa. Max FRR -/90/90

Protecta FR Collar Timber Wall Insulated Plastic Pipe

System ID FC607

PE or PP plastic pipes up to 160mm with combustible or non-combustible insulation through a 100mm solid timber or CLT wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Collar Timber Wall Insulated Metal Pipe

System ID FC608

Steel or Copper pipes up to 54mm or Alupex pipes up to 75mm with combustible or non-combustible insulation through a 100mm solid timber or CLT wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa. Max FRR -/120/90

Protecta FR Collar Concrete Wall Plastic Pipe Single-sided

System ID FC550

Combustible pipe 32-160mm (PVC, PE, PE-HD, PEX, PP, PP-R, etc) through a concrete wall. Single Protecta collar to either side, with Protecta FR Acrylic sealant. Oversize collars permitted. Min wall thickness 75mm. Zero smoke leakage up to 200Pa with 10mm FR Acrylic. Max FRR -/240/180

Protecta FR Collar Concrete Wall Plastic Pipe

System ID FC145

Combustible pipe 32-400mm (PVC, PE, PE-HD, PEX, PP, PP-R, etc) through a concrete wall from 100mm. Protecta collar to both sides, with Protecta FR Acrylic sealant. Oversize collars permitted. Zero smoke leakage up to 200Pa with 10mm FR Acrylic. Max FRR -/240/240

Protecta FR Collar Concrete Wall Composite Pipe

System ID FC610

Low-noise waste pipes (mineral reinforced PP) and Aquatherm domestic water pipes (PP-R, PP-RP, PP-RCT) 32-160mm through a 100mm concrete, AAC or masonry wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Oversize collars permitted. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Collar Concrete Wall Plastic Pipe Bundles

System ID FC611

Plastic pipes up to 40mm of any type (PVC-C, PVC-U, PE, HDPE, PEX, PP, PP-R, PP-MV, PP-H) in mixed bundles up to 160mm through a 100mm concrete, AAC or masonry wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa. Max FRR -/90/90

Protecta FR Collar Concrete Wall Cables

System ID FC612

Cables, single or bundled, (electrical with copper or aluminium conductors, fibre optic or data) up to 160mm through a 100mm concrete, AAC or masonry wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa. Max FRR -/120/60

Protecta FR Collar Concrete Wall Conduits

System ID FC613

Conduits up to 40mm of any rigid or flexible plastic, single or bundled, with or without cables up to 21mm (electrical with copper or aluminium conductors, fibre optic or data) in mixed bundles up to 160mm through a 100mm concrete, AAC or masonry wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa. Max FRR -/90/90

Protecta FR Collar Concrete Wall Insulated Plastic Pipe

System ID FC614

PE or PP plastic pipes up to 160mm with combustible or non-combustible insulation through a 100mm concrete, AAC or masonry wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa. Max FRR -/120/120

Protecta FR Collar Concrete Wall Insulated Metal Pipe

System ID FC615

Steel or Copper pipes up to 54mm or Alupex pipes up to 75mm with combustible or non-combustible insulation through a 100mm concrete, AAC or masonry wall. Protecta collar both sides, with Protecta FR Acrylic sealant. Zero smoke leakage up to 200Pa. Max FRR -/120/90

Protecta FR Wrap Concrete Wall Metal Pipe Combustible Insulation

System ID FC584

Metal pipe (Steel to 324mm, Copper to 54mm, Alupex to 75mm) with combustible insulation through a core-drilled concrete wall min 100mm thick. Protecta FR Wrap to both sides of wall. Max annular space 30mm. Fill all remaining annular space with Protecta FR Acrylic to full depth of wall. Max FRR -/120/120

Protecta FR Wrap Core-drilled Concrete Wall Plastic Pipes

System ID FC571

Plastic pipes (PVC-U, HDPE, PEX, PP, PPR, Acoustic, Aquatherm, etc) and bundles of mixed 32mm plastic pipes through a core-drilled concrete wall min 100mm thick. Protecta FR Wrap to both sides of wall. Max annular space 30mm. Fill all remaining annular space with Protecta FR Acrylic to full depth of wall. Max FRR -/240/240

Protecta FR Wrap Concrete Wall Conduit

System ID FC101

Plastic conduit (PVC, PE, PEX, PP, PP-R, etc) through a core-drilled 100mm concrete wall, Two layers of Protecta FR Wrap to each side. Max annular gap 30mm. Finish with Protecta FR Acrylic to full depth of wall. Max FRR -/120/90

Protecta FR Wrap Concrete Wall Plastic Pipe Combustible Insulation

System ID FC583

Plastic pipes (PE, HDPE, PEX, PP, PPR, etc) with combustible insulation through a core-drilled concrete wall min 100mm thick. Protecta FR Wrap to both sides of wall. Max annular space 30mm. Fill all remaining annular space with Protecta FR Acrylic to full depth of wall. Max FRR -/60/60

Protecta FR Wrap Concrete Floor Core-drilled Metal Pipe Combustible Ins

System ID FC575

Metal pipes with combustible insulation (steel 40mm-165mm, copper to 54mm, Alupex to 75mm) through a 100mm core-drilled concrete floor. Max annular gap 30mm. Protecta FR Pipe Wrap 50mm fitted at bottom of seal. Fill any remaining annular space to a depth of 15mm with Protecta FR Acrylic sealant backed with 25mm stone wool (or fill with 40mm Acrylic). Max FRR -/240/120

Protecta FR Wrap Concrete Floor Core-drilled Plastic Pipe

System ID FC585

Plastic pipe (PVC-U up to 110mm) through a 100mm core-drilled concrete floor. Max annular gap 30mm. Protecta FR Pipe Wrap 50mm fitted at bottom of seal. Fill any remaining annular space to a depth of 15mm with Protecta FR Acrylic sealant backed with 25mm stone wool (or fill with 40mm Acrylic). Max FRR -/90/90

Protecta FR Board Concrete Wall Blank

System ID FC253

Blank seal in concrete wall up to 1200mm high x unlimited width. Protecta FR Board 60mm 2-s, one sheet friction-fitted anywhere within aperture. Seal edges with FR Acrylic. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/90

Protecta FR Board Roof Space Blank

System ID FC311

Blank seal between top of a concrete or plasterboard wall and underside of above construction substrate, which may be flat, sloping or serrated (e.g. Comflor, Traydec, etc). FR Board friction fitted any position within aperture. Unlimited width x 1200 high. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/90

Protecta FR Board Concrete Wall Single Cable

System ID FC176

Cable (single up to 21mm, any position in board) through a concrete wall min 75mm thick with Protecta FR Board 60mm 2-sided friction fitted anywhere in wall cavity. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/90

Protecta FR Board Concrete Wall Steel, Copper, Alupex Pipes CI, CS

System ID FC178

Metal pipe (interrupted or continuous insulation, copper to 54mm, steel to 325mm, Alupex to 75mm) through a concrete wall min 75mm thick. Protecta FR Board 60mm 2-sided to one side of wall only. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/120

Protecta FR Board Concrete Wall Bare Metal Pipes

System ID FC351

Metal pipes (Uninsulated, Copper to 54mm, Steel to 325mm, Alupex to 75mm) through a concrete wall min 75mm thick. Protecta FR Board 60mm 2-sided to one side of wall only. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/-

Protecta FR Board Concrete Wall Metal Pipe Comb Ins

System ID FC276

Metallic pipes (Copper to 54mm, Alupex to 75mm) with continuous combustible or non-combustible insulation through a concrete, AAC or masonry wall. Single Protecta FR Board 60mm 2-S anywhere in the aperture (max 1200 x 600mm). Protecta FR Collar either side of FR Board. Collar may be oversize to 110mm. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60

Protecta FR Board Concrete Wall Plastic Pipes Collar

System ID FC104

Plastic pipes (PVC, PE, PEX, HDPE, etc) through a concrete wall min 75mm thick, Single Protecta FR Board 60mm 2-S anywhere in the aperture (max 1200 x 600mm) with Protecta FR Collar each side of FR Board. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/60

Protecta FR Boardx2 Concrete Wall Blank

System ID FC252

Blank seal in concrete or masonry wall up to 1200mm high x unlimited width. Wall thickness minimum 75mm. Protecta FR Board 60mm double-sided friction fitted to both sides of wall. Pattress fit option available. Seal edges with FR Acrylic. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/240

Protecta FR Boardx2 Concrete Wall Cables, Conduits

System ID FC310

Cables (single or bundles) and conduits through a concrete or masonry wall min 75mm thick. Protecta FR Board 60mm or 50mm to both sides of wall. Finish with Protecta FR Acrylic sealant. Pattress fit option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/180

Protecta FR Boardx2 Concrete Wall Cable Trays

System ID FC175

Cable trays or conduit through a concrete wall min 75mm thick. Protecta FR Board 60mm or 50mm to both sides of wall. Finish with Protecta FR Acrylic sealant. Pattress fit option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/180

Protecta FR Boardx2 Concrete Wall Metal Pipe Interrupted

System ID FC177

Metal pipes with interrupted insulation (Steel to 219mm, Copper to 54mm, Alupex to 16mm) through a concrete wall min 75mm thick.. Protecta FR Board 60mm or 50mm to both sides of wall. Finish with Protecta FR Acrylic. Unlimited width x 1200mm high. Pattress fit option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/180

Protecta FR Boardx2 Concrete Wall Metal Pipe Bare

System ID FC569

Metal pipes with no insulation (Steel to 324mm, Copper to 54mm, Alupex to 75mm) through a concrete wall min 75mm thick. Protecta FR Board 60mm or 50mm to both sides of wall. Finish with Protecta FR Acrylic. Unlimited width x 1200mm high. Pattress fit option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/-

Protecta FR Boardx2 Concrete Wall Metal Pipe Continuous Ins

System ID FC275

Metal pipes (Steel up to 324mm, Copper up to 54mm, Alupex up to 75mm, continuous sustained insulation) through a concrete wall min 75mm thick. Protecta FR Board 60mm or 50mm to both sides of wall. Pattress fit option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/180

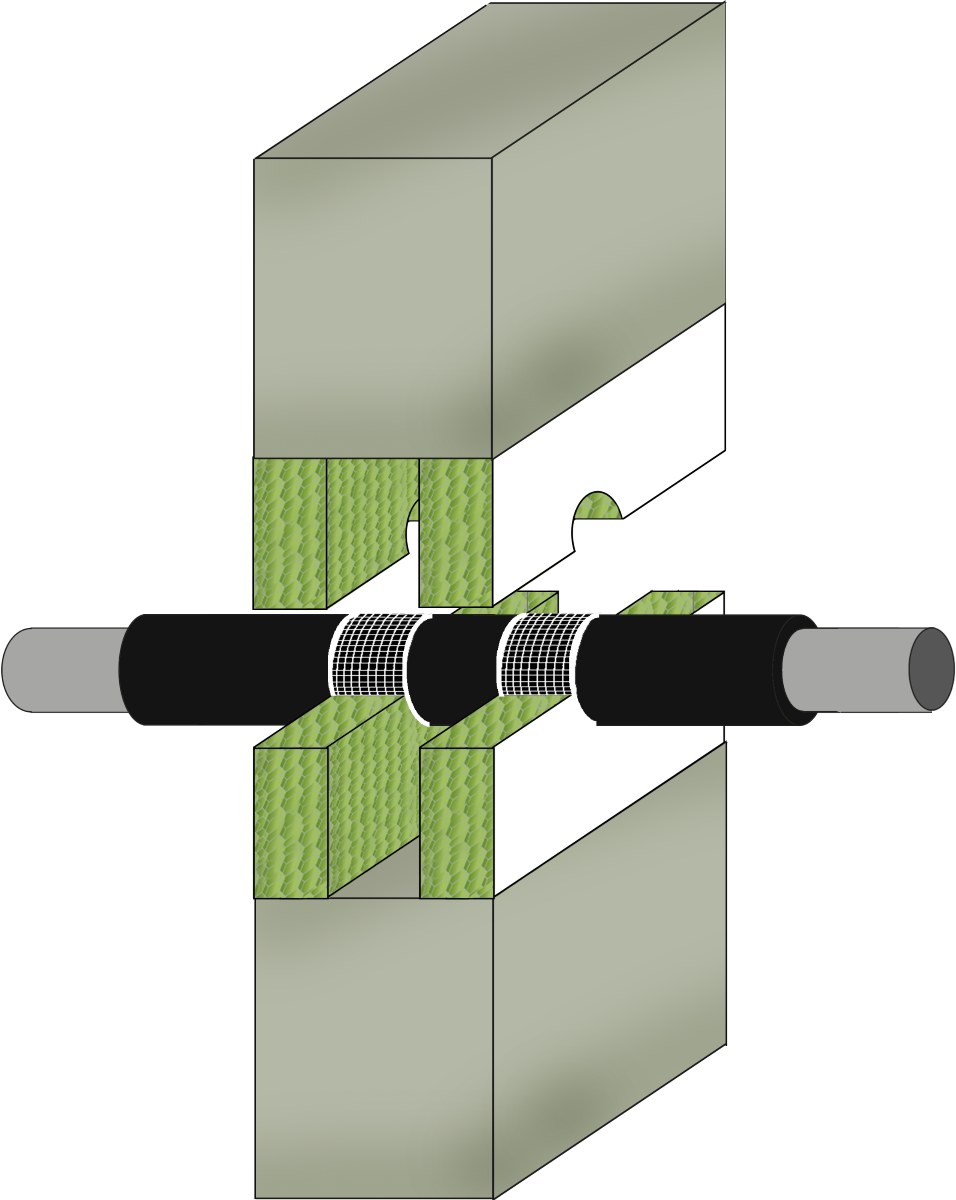

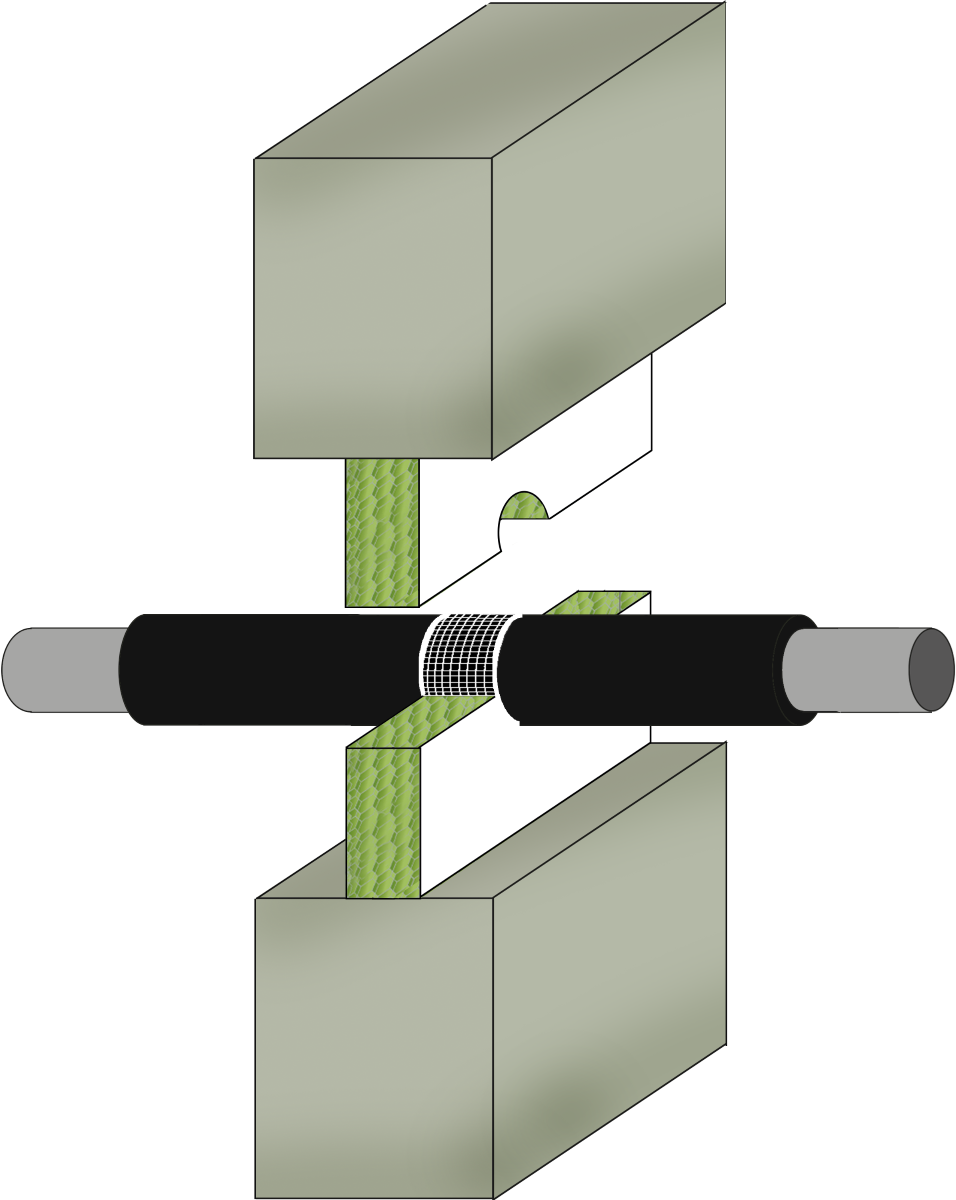

Protecta FR Board Concrete Wall Metal Pipe Combustible Insulation

System ID FC234

Metal pipes with continuous combustible or non-combustible insulation (Steel to 324mm, Copper to 54mm, Alupex to 75mm) through a concrete wall min 75mm thick. Protecta FR Board 50mm and Protecta FR Wrap to each side of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR - /120/120

Protecta FR Board Concrete Wall Conduits (Single or Bundle)

System ID FC102

Plastic conduits (PVC, PE, PE-HD, PEX, PP, PP-R) up to 110mm fully or partially filled with cables up to 14mm diam or smaller conduits in bundles up to 110mm diam through a concrete, AAC or masonry wall min 75mm thick. Protecta FR Board 50mm 1-S each side. Double layer Protecta FR Pipe Wrap around conduit each side of wall. Finish with Protecta FR Acrylic sealant. Pattress option. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/90

Protecta FR Boardx2 and Wrap Concrete Wall Plastic Pipes

System ID FC570

Plastic pipes (PVC-U, HDPE, PEX, PP, PPR and specialty acoustic and thermal) and bundles of mixed 32mm plastic pipes through a concrete wall min thickness 75mm. Protecta FR Board 60mm or 50mm and Protecta FR Wrap to both sides of wall. Protecta FR Acrylic to finish. Pattress fit option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/240

Protecta FR Board Concrete Wall Plastic Pipes Combustible Insulation

System ID FC103

Plastic pipes (PP, PE, PEX, PE-HD, PP-R) up to 160mm diam with combustible Elastomeric or PE Foam insulation (9 - 50mm thick) or non-combustible insulation through a concrete, AAC or masonry wall min 75mm thick. Protecta FR Board 50mm 1-S each side. Protecta FR Pipe Wrap around pipe insulation each side of wall. Finish with Protecta FR Acrylic sealant. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60.

Protecta FR Board Concrete Wall Mixed Services

System ID FC408

Protecta FR Board and Protecta EX Mortar may be used to provide a penetration seal for mixed services within the same aperture. Services can include cables, cable trays, metallic pipes, composite pipes and plastic pipes, with and without insulation.

Protecta FR Board x2 Concrete Floor Blank

System ID FC256

Blank seal in 150mm concrete floor up to 2400 x 1200mm. Two layers Protecta FR Board 60mm double-sided with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/180/180

Protecta FR Board x2 Concrete Floor Cables & Trays

System ID FC182

Cables (single, bundles or cable trays) or PVC Conduit through a 150mm concrete floor. Two layers Protecta FR Board 60mm 2-S with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Concrete Floor Blank

System ID FC257

Blank seal in 100mm concrete floor up to 2400 x 1200mm (or linear gap up to 800mm). One layer Protecta FR Board 60mm double-sided anywhere in aperture. Seal edges Protecta FR Acrylic. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/90

Protecta FR Board Concrete Floor Cables & Trays

System ID FC183

Cables (single, bundled or cable trays) and conduit through a 100mm concrete floor. One Protecta FR Board 60mm 2-sided positioned anywhere in floor. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/90/30

Protecta FR Board x2 Concrete Floor Steel Pipe CI

System ID FC185

Steel pipe (interrupted insulation, mild or stainless steel up to 219mm) through a concrete floor min 120mm. Two layers of Protecta FR Board 60mm 2-sided fitted together anywhere within the floor. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/240

Protecta FR Board x2 Concrete Floor Steel Pipe Bare

System ID FC573

Steel pipe (no insulation, mild or stainless steel up to 219mm) through a concrete floor min 120mm. Two layers of Protecta FR Board 60mm 2-sided fitted together anywhere within the floor. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/-

Protecta FR Board Concrete Floor Steel, Copper, PEX/AL/HDPE Pipe Interrupted Ins

System ID FC186

Metallic pipe (interrupted insulation, copper to 54mm, steel to 219mm, PEX/AL/HDPE to 75mm) through a 100mm concrete floor. One layer Protecta FR Board 60mm 2-sided anywhere in floor space. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/240

Protecta FR Board Concrete Floor Steel, Copper, PEX/AL/HDPE Pipe Bare

System ID FC574

Metallic pipe (no insulation, copper to 54mm, steel to 219mm, PEX/AL/HDPE to 75mm) through a 100mm concrete floor. One layer Protecta FR Board 60mm 2-sided anywhere in floor space. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/-

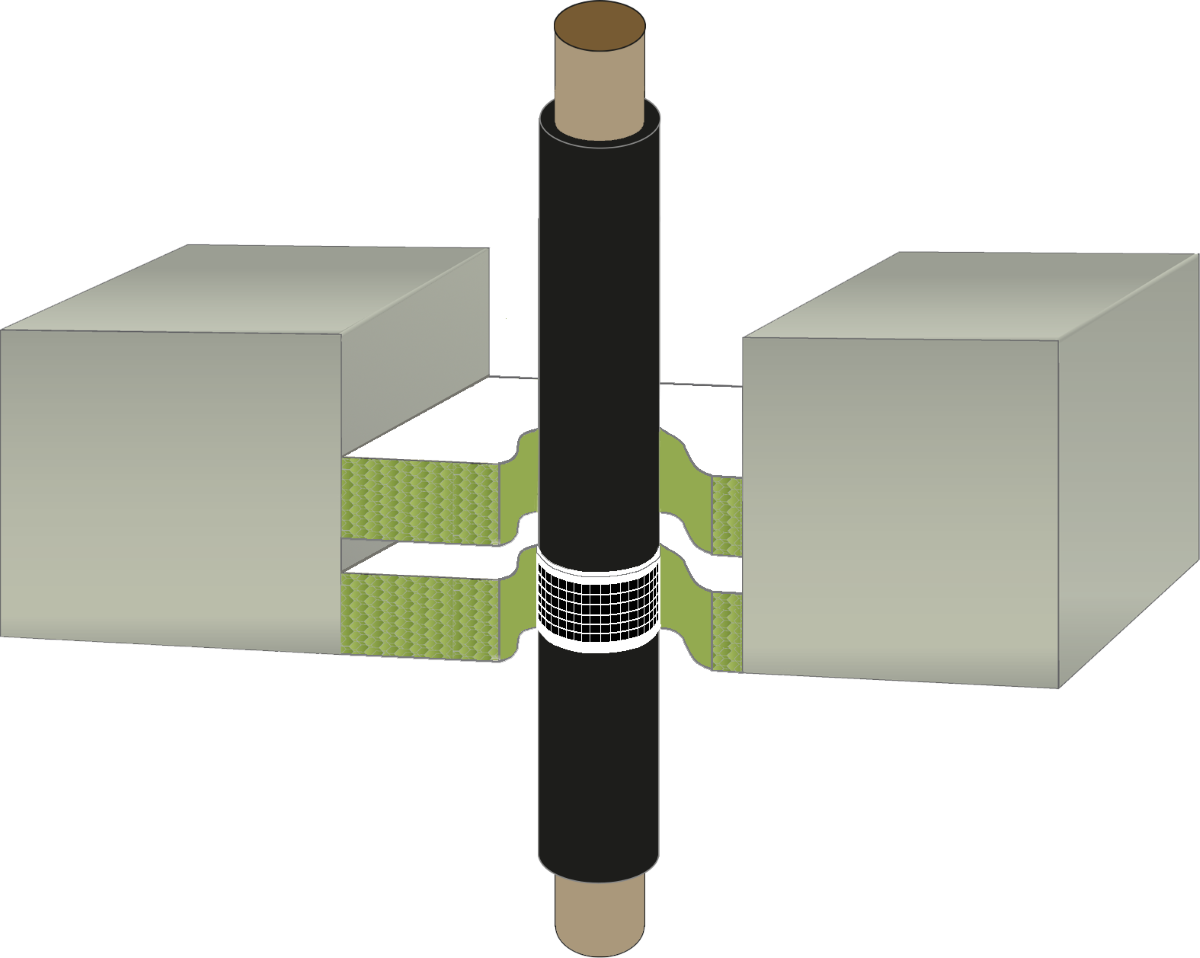

Protecta FR Board-Pipe Wrap Concrete Floor Combustible/Non-combustible Ins

System ID FC167

Metal pipes with continuous combustible or non-combustible insulation (steel 40mm-165mm, copper to 54mm, Alupex to 75mm) through a 120mm concrete floor. Two Protecta FR Boards 60mm 2-sided fitted anywhere in the aperture, together or separate. Protecta FR Pipe Wrap 50mm fitted at bottom of seal. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/120

Protecta FR Board Concrete Floor Mixed Services

System ID FC572

Protecta FR Board and Protecta EX Mortar may be used to provide a penetration seal for mixed services within the same aperture. Services can include cables, cable trays, metallic pipes, composite pipes and plastic pipes, with and without insulation.

Protecta FR Board Timber Floor Linear Gap

System ID FC549

Linear gap in solid timber or CLT floor (up to 400mm wide, unlimited length). Protector FR Board friction fitted into gap and second FR Board pattress fitted to soffit. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/90/90

Protecta FR Board Timber Floor Cables & Trays

System ID FC576

Cables (single, bundled or cable trays) and conduit through a 150mm solid timber or CLT floor. One Protecta FR Board 50mm or 60mm friction fitted within aperture and second FR Board overlapping the aperture by 100mm all sides. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/90/60

Protecta FR Board Timber Floor Steel, Copper, Alupex Pipe Interrupted Insulation

System ID FC577

Metallic pipe (interrupted insulation, copper to 54mm, steel to 273mm, Alupex to 75mm) through a 150mm solid timber or CLT floor. One layer Protecta FR Board 50mm or 60mm within the aperture with a second FR Board overlapping 100mm. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/90/90

Protecta FR Board Timber Floor Steel, Copper, Alupex Pipe Bare

System ID FC578

Metallic pipe (bare - no insulation, copper to 54mm, steel to 273mm, Alupex to 75mm) through a 150mm solid timber or CLT floor. One layer Protecta FR Board 50mm or 60mm within the aperture with a second FR Board overlapping 100mm. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/90/-

Protecta FR Board Plasterboard Wall Blank or Linear Gap

System ID FC258

Blank or linear gap seal in plasterboard wall up to 1200mm high x unlimited width. One layer Protecta FR Board 50mm 1-S to each side of wall. Minimum single layer 13mm plasterboard. Seal with Protecta FR Acrylic. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Plasterboard Wall Linear Gap to Rigid Substrate

System ID FC601

Blank or linear gap seal up to 1200mm high x unlimited width from plasterboard wall to rigid substrate (concrete, AAC, masonry, steel, etc). One layer Protecta FR Board 50mm 1-S to each side of wall. Minimum single layer 13mm plasterboard. Seal with Protecta FR Acrylic. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Plasterboard Wall Cables

System ID FC580

Cables, single or bundled through a plasterboard wall, including single layer plasterboard walls. Protecta FR Board 50mm 1-S (or 60mm 2-S) to both sides of wall. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60

Protecta FR Board Plasterboard Wall Cables & Trays

System ID FC188

Cables and conduits on trays through a plasterboard wall, including single layer plasterboard walls. Protecta FR Board 50mm 1-S (or 60mm 2-S) to both sides of wall. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60

Protecta FR Board Plasterboard Wall CS Metal Pipes

System ID FC272

Metal pipes (continuous non-combustible insulation, steel to 324mm, copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Board 50mm 1-S to each side of wall. Pattress fixed option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

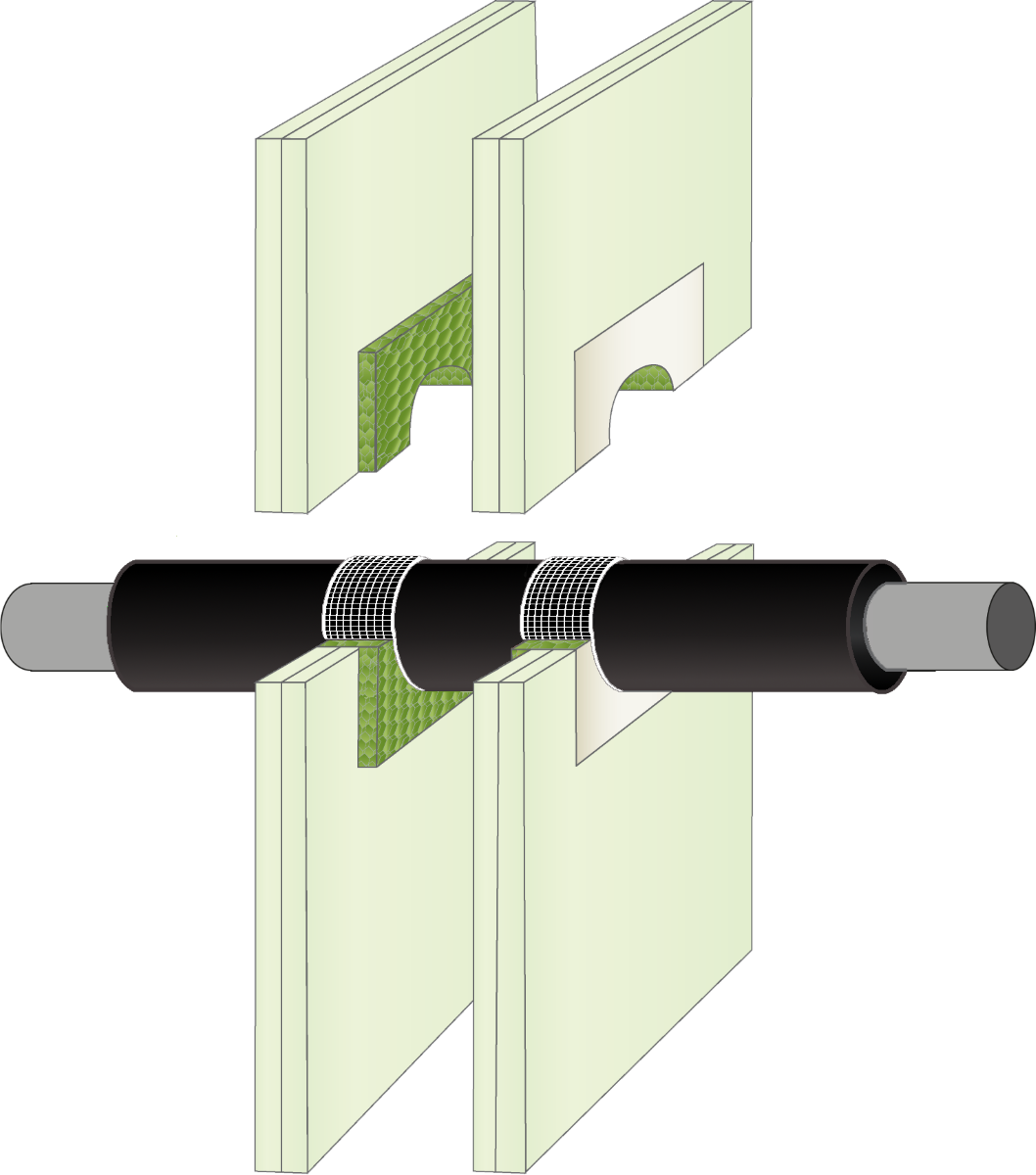

Protecta FR Board Plasterboard Wall Metal Pipe Combustible/Non-combustible Insulation

System ID FC274

Metal pipes with continuous combustible or non-combustible insulation (steel to 324mm, copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Board 50mm 1-S each side. Protecta FR Pipe Wrap around pipe insulation. Finish with Protecta FR Acrylic sealant. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Plasterboard Wall Metal Pipe Interrupted Insulation

System ID FC189

Metal pipes with insulated interrupted (steel to 219mm, copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Board 50mm 1-sided to both sides of wall. Finish with Protecta FR Acrylic. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Plasterboard Wall Metal Pipes Bare

System ID FC313

Metallic pipes (un-insulated, steel to 324mm, copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Board 50mm 1-sided to both sides of wall. Finish with Protecta FR Acrylic. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/-

Protecta FR Board Plasterboard Wall Conduits (Single or Bundle)

System ID FC559

Plastic conduits (PVC, PE, PE-HD, PEX, PP, PP-R) up to 110mm fully or partially filled with cables up to 14mm diam or smaller conduits in bundles up to 110mm diam through a plasterboard wall. Protecta FR Board 50mm 1-S each side. Double layer Protecta FR Pipe Wrap around conduit each side of wall. Finish with Protecta FR Acrylic sealant. Pattress option. Smoke-safe. Max FRR -/120/90

Protecta FR Board Plasterboard Wall Plastic Pipes

System ID FC581

Plastic pipes (PVC, PE, PE-HD, PEX, PP, PP-R up to 400mm) or composite pipes (Aquatherm, Uponor Decibel, etc up to 160mm) through a plasterboard wall. Protecta FR Board 50mm or 60mm each side. Protecta FR Pipe Wrap around pipes each side of wall. Finish with Protecta FR Acrylic sealant. Pattress option. Smoke-safe. Max FRR -/120/120

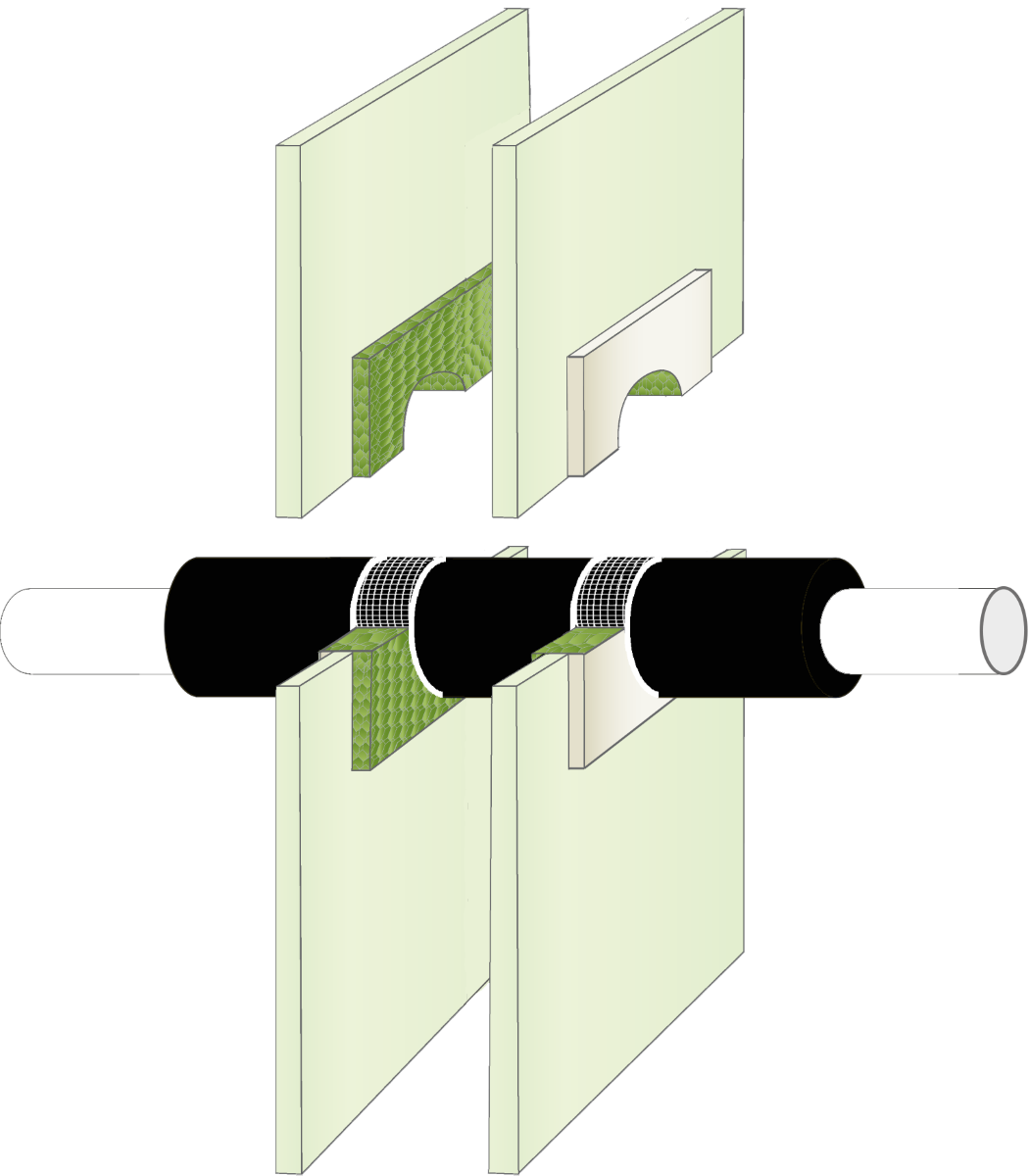

Protecta FR Board Plasterboard Wall Plastic Pipes Combustible/Non-combustible Insulation

System ID FC364

Plastic pipes (PP, PE, PEX, PE-HD, PP-R) up to 160mm diam with combustible Elastomeric or PE Foam insulation (9 - 50mm thick) or non-combustible insulation through a plasterboard wall. Protecta FR Board 50mm 1-S each side. Protecta FR Pipe Wrap around pipe insulation each side of wall. Finish with Protecta FR Acrylic sealant. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60

Protecta FR Board Plasterboard Wall Metal Pipes Insulated

System ID FC171

Metal pipes with stone wool continuous insulation (Steel to 324mm, copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Board 60mm 2-sided to either side of wall or anywhere inbetween. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/90/60

Protecta FR Board Plasterboard Wall Plastic Pipe Collar

System ID FC172

Plastic pipes (PVC, HDPE, PEX, PP, PP-R, etc all to 160mm) through a plasterboard wall. Protecta FR Board 60mm 2-sided to either side of the wall or anywhere inbetween. Protecta FR Collar to both sides of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/60

Protecta FR Board Plasterboard Wall Metal Pipe Combustible or Non-combustible Insulation

System ID FC170

Metallic pipes with continuous combustible or non-combustible insulation (Copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Collar to both sides of the wall. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60

Protecta FR Board Plasterboard Wall C-Purlin

System ID FC743

A system designed to protect C-Purlins installed in a fire-rated plasterboard, concrete or masonry wall, using Protecta FR Board & Protecta FR Acrylic.
Tested in NZ to AS1530.4 – 2014 in a local impartial IANZ accredited 3rd party laboratory to max FRR -/120/120.
Tested configurations: 3-sided with purlin against a concrete soffit and 4-sided.
Tested C-Purlin sizes 200/12 and 400/20.

Protecta FR Board Plasterboard Wall I-Beam

System ID FC783

Plasterboard, concrete or masonry walls penetrated by an I-beam. Pattress fitted Protecta FR Board with Protecta FR Acrylic.
Tested in NZ to AS1530.4 – 2014 by an impartial IANZ accredited 3rd party laboratory to max FRR -/120/120
Tested configurations: 3-sided to concrete soffit, including wrapping and 4-sided with no wrapping.
Tested beam was 250UC89.5 (approx 255mm x 260mm)

Protecta FR Board Timber Wall Blank or Gap Seal

System ID FC166

Blank or linear gap seal in a solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress fitted to each side of wall oversailing aperture by 100mm. Fix with 100mm wood screws and penny washers. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Timber Wall Cables

System ID FC586

Cables, single or bundled through a 100mm solid timber or CLT wall. Protecta FR Board 50mm 1-S (or 60mm 2-S) pattress-fitted to both sides of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60

Protecta FR Board Timber Wall Cables & Trays

System ID FC587

Cables and conduits on trays through a 100mm solid timber or CLT walls. Protecta FR Board 50mm 1-S (or 60mm 2-S) pattress-fitted to both sides of wall. Smoke-safe (<0.1m3/h smoke leakage at 200Pa). Max FRR -/120/90

Protecta FR Board Timber Wall CS Metal Pipes

System ID FC588

Metal pipes with continuous non-combustible insulation (steel to 324mm, copper to 54mm, Alupex to 75mm) through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted to each side of wall. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Timber Wall Metal Pipe Combustible or Non-combustible Insulation

System ID FC589

Metal pipes with continuous combustible or non-combustible insulation (steel to 324mm, copper to 54mm, Alupex to 75mm) through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted to each side. Protecta FR Pipe Wrap around pipe insulation each side of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h leakage). Max FRR -/120/120

Protecta FR Board Timber Wall Metal Pipe Interrupted Insulation

System ID FC590

Metal pipes with insulated interrupted (steel to 219mm, copper to 54mm, Alupex to 75mm) through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted to both sides of wall. Finish with Protecta FR Acrylic. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Timber Wall Metal Pipes Bare

System ID FC591

Metallic pipes (un-insulated, steel to 324mm, copper to 54mm, Alupex to 75mm) through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted to both sides of wall. Finish with Protecta FR Acrylic. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/30

Protecta FR Board Timber Wall Conduits (Single or Bundle)

System ID FC592

Plastic conduits (PVC, PE, PE-HD, PEX, PP, PP-R) up to 110mm fully or partially filled with cables up to 14mm diam or smaller conduits in bundles up to 110mm diam through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted each side. Double layer Protecta FR Pipe Wrap around conduit each side of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe. Max FRR -/120/90

Protecta FR Board Timber Wall Plastic Pipes

System ID FC593

Plastic pipes (PVC, PE, PE-HD, PEX, PP, PP-R up to 400mm) or composite pipes (Aquatherm, Uponor Decibel, etc up to 160mm) through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted each side. Protecta FR Pipe Wrap around pipes each side of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Timber Wall Plastic Pipes Combustible or Non-combustible Insulation

System ID FC594

Plastic pipes (PP, PE, PEX, PE-HD, PP-R) up to 160mm diam with continuous combustible Elastomeric or PE Foam insulation (9 - 50mm thick) or non-combustible insulation through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted each side. Protecta FR Pipe Wrap around pipe insulation each side of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe. Max FRR -/60/60

Protecta EX Mortar Concrete Floor Mixed Services

System ID FC407

Protecta FR Board and Protecta EX Mortar may be used to provide a penetration seal for mixed services within the same aperture. Services can include cables, cable trays, metallic pipes, composite pipes and plastic pipes, with and without insulation.
