System Selector

The System Selector below will help you choose the correct system. Simply tick the boxes that apply to your situation and click "Search Systems".
You can also use this page to create your own Firestopping Specification. To see how go to Specification Instructions
If you want to restrict your search to a particular product, click your choice from the "Product" dropdown menu.
If you know the identification number (FCxxx) of the system(s) you want then simply type them into the "System ID" box (separate by commas for multiple numbers) and click "Search Systems".
For an Excel spreadsheet version of all systems, click here for a list of systems

Wall

Floor

Ceiling

Plasterboard

Concrete

CLT

Korok/Speedpanel

Plastic Pipe

PEX Pipe

AluPEX Pipe

Metal Pipe

Copper/Brass Pipe

Cables

Cable Trays

Conduits

Pair Coils

Elect Dist Box

Joints and Gaps

Tilt Slab

Steel

Combos

Ducts

Smoke Seal

Blanks

Hatches

Collars

Naked Wall

Product : 3M™ All Weather Flashing Tape 80673M™ Fire Barrier Composite Sheet CS-195+3M™ Fire Barrier Duct Wrap 615+3M™ Fire Barrier FS-195+ Wrap/Strip3M™ Fire Barrier Pillows3M™ Fire Barrier Sealant 3000 WT 3M™ Fire Barrier Sealant CP 25WB+3M™ Fire Barrier Tuck-In Wrap Strips3M™ Interam™ Endothermic Mat E-5A-43M™ Ultra GS Wrap Strip GS-40ACTIFOAM SheetsAGNI-SleeveAllproof Cast-In CollarsAllproof Drop-In Fire CollarAllproof Flush Box Intumescent PadAllproof Low Profile Fire CollarAllproof Pipe WrapDouble Leaf Fire DoorsFIRESTOP Cable TiesFIRESTOP Duct Access Hatch FIRESTOP Duct Wrap-25FIRESTOP Duct Wrap-38FIRESTOP Gap SealFIRESTOP Inspection HatchFIRESTOP Thermal WrapMulticollar SlimNOFIRNO BoardNOFIRNO SealantProtecta EX MortarProtecta FR Acrylic SealantProtecta FR AdhesiveProtecta FR BoardProtecta FR CoatingProtecta FR CollarProtecta FR DampersProtecta FR Graphite SealantProtecta FR IPT SealantProtecta FR IPT Sealant Eco-SausageProtecta FR Pipe WrapProtecta FR Putty CordsProtecta FR Putty PadProtecta Mineral Fibre BioProtecta Naked Walls using FR BoardProtecta Steel Paint FR-1Protecta WaterprooferRISE RAPID SleevesRISE/NOFIRNO SleevesRISE/ULTRA Crusher WrapRLA FirePro FR Intumescent SealantRockwool BoardRockwool Pipe InsulationSingle Leaf Fire DoorsTech Coatings FBL-100 Intumescent PaintTenmat FF102 Stainless Steel ScrewsTenmat FF102 Ventilated Fire BarriersTrafalgar FyreWrap Elite

Required Fire Rating : 1530456090120180240

System ID(s) :

Search Systems    Clear selection

Download technical drawings Clicking this download button will produce a .zip file of all Technical Drawings for the systems showing for this search. This may save time for specifiers and others preparing documents for compliance purposes.

FIRESTOP Duct Wrap-38 Plasterboard Wall Rectangular Duct

System ID FC107

Rectangular duct penetrating a plasterboard fire-rated wall (from single layer 13mm). FIRESTOP Duct Wrap-38 single or double layer. Internal or external fire. Up to FRR 120/120/120.

View +Spec

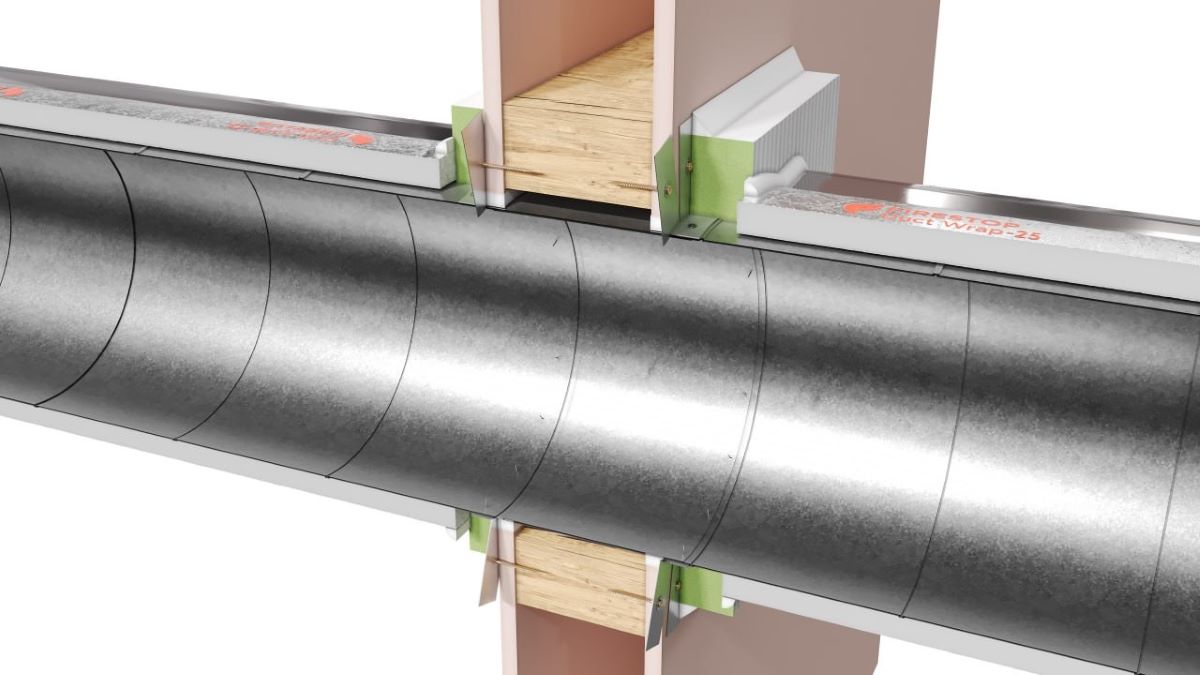

FIRESTOP Duct Wrap-38 Plasterboard Wall Circular Duct

System ID FC546

Circular duct penetrating a plasterboard fire-rated wall (from single layer 13mm). FIRESTOP Duct Wrap-38 single or double layer. Internal or external fire. Up to FRR 120/120/120.

View +Spec

FIRESTOP Duct Wrap-38 Concrete Wall Rectangular Duct

System ID FC794

Rectangular duct penetrating a concrete or masonry wall, 90mm thick or greater. FIRESTOP Duct Wrap-38 single or double layer. Internal or external fire. Up to FRR 120/120/120.

View +Spec

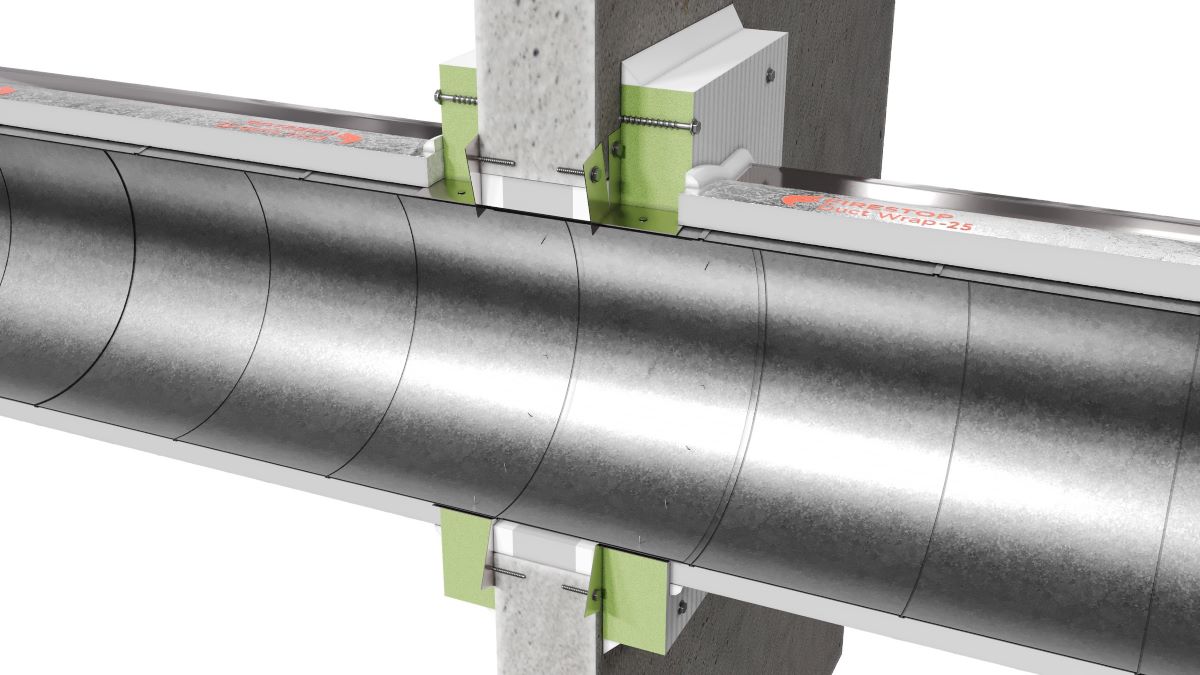

FIRESTOP Duct Wrap-38 Concrete Wall Circular Duct

System ID FC560

Circular duct up to 1000mm diam in a square or core-drilled aperture through a concrete or masonry wall, 90mm thick or greater. FIRESTOP Duct Wrap-38 single or double layer. Internal or external fire. Up to FRR 120/120/120.

View +Spec

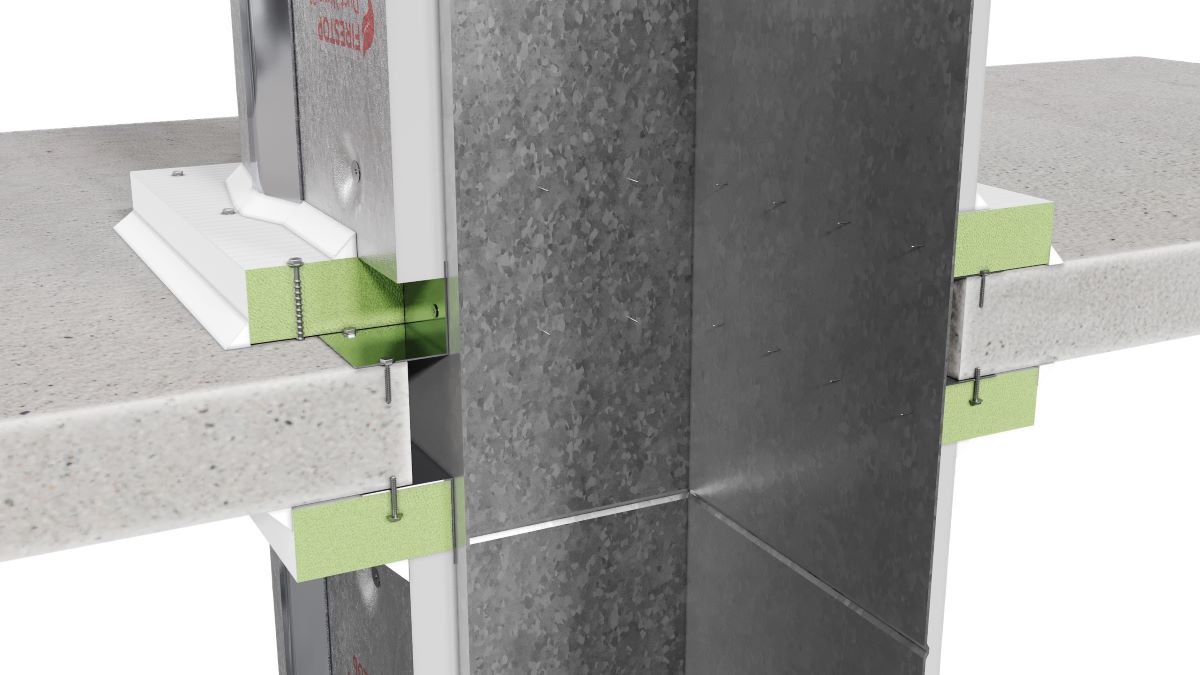

FIRESTOP Duct Wrap-38 Concrete Floor Rectangular Duct External Fire

System ID FC284

Rectangular duct penetrating a concrete floor, 90mm thick or greater. FIRESTOP Duct Wrap-38 double layer. External fire. Up to FRR 120/120/120.

View +Spec

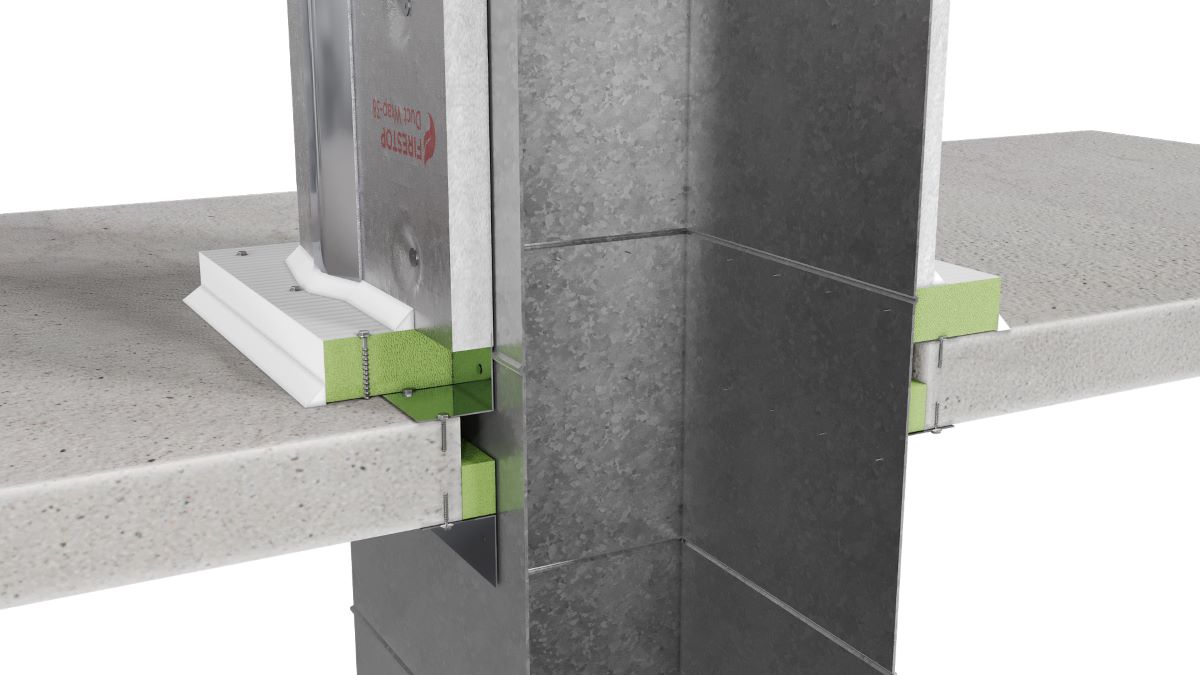

FIRESTOP Duct Wrap-38 Concrete Floor Rectangular Duct Internal Fire

System ID FC223

Rectangular duct penetrating a concrete floor, 90mm thick or greater. FIRESTOP Duct Wrap-38 single, double or triple layer. Internal fire. Up to FRR 120/120/120.

View +Spec

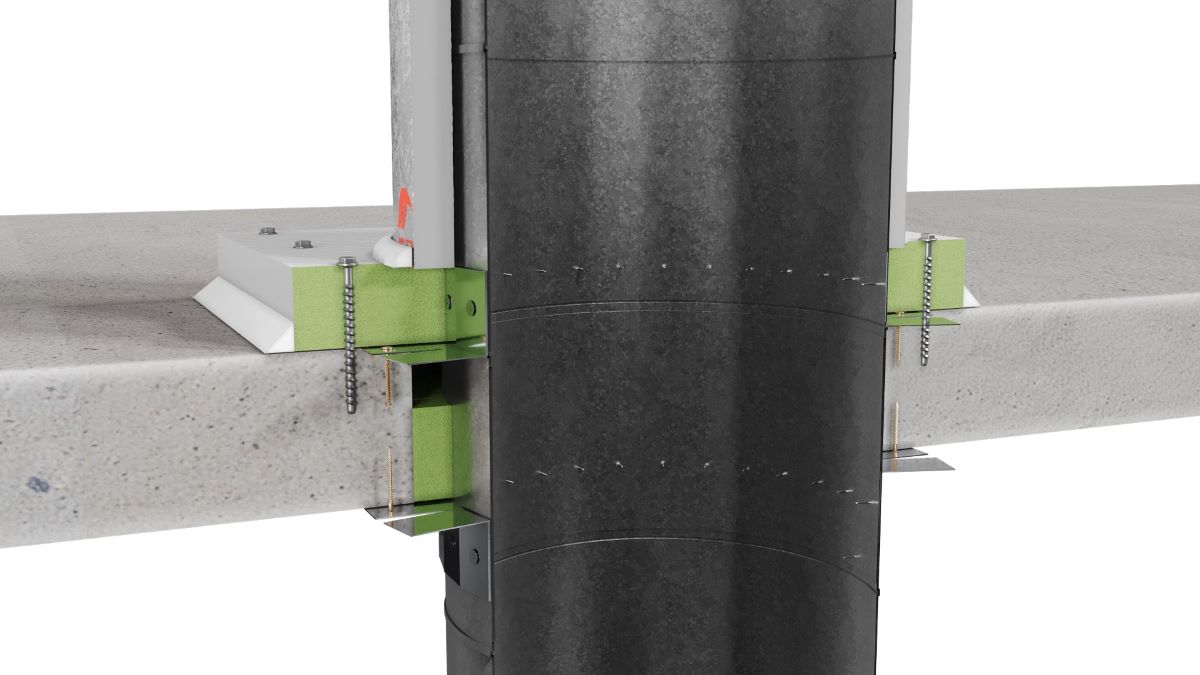

FIRESTOP Duct Wrap-38 Concrete Floor Circular Duct Internal Fire

System ID FC503

Circular duct up to 1000mm diam in a square or core-drilled aperture penetrating a concrete floor, 90mm thick or greater. FIRESTOP Duct Wrap-38 single, double or triple layer. Internal fire. Up to FRR 120/120/120.

View +Spec

FIRESTOP Duct Wrap-38 Floor-Ceiling Rectangular Duct External Fire

System ID FC285

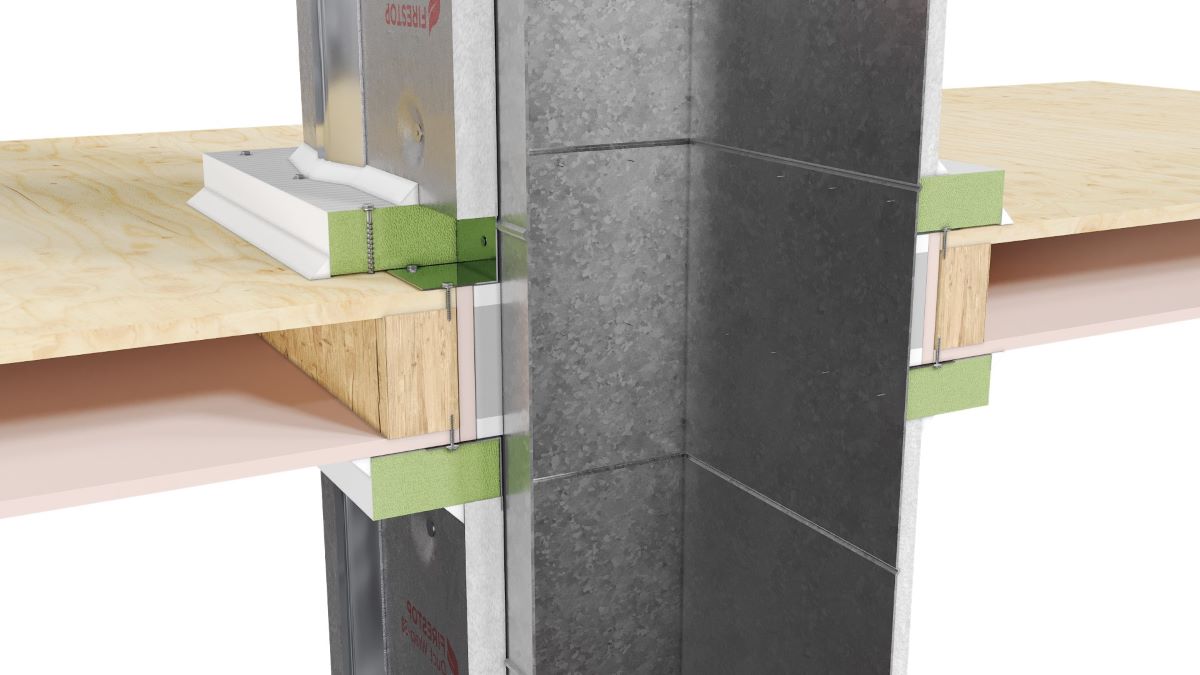

Rectangular duct penetrating a floor/ceiling system (1x16mm plasterboard ceiling). FIRESTOP Duct Wrap-38 double layer. External fire. Up to FRR 120/120/120.

View +Spec

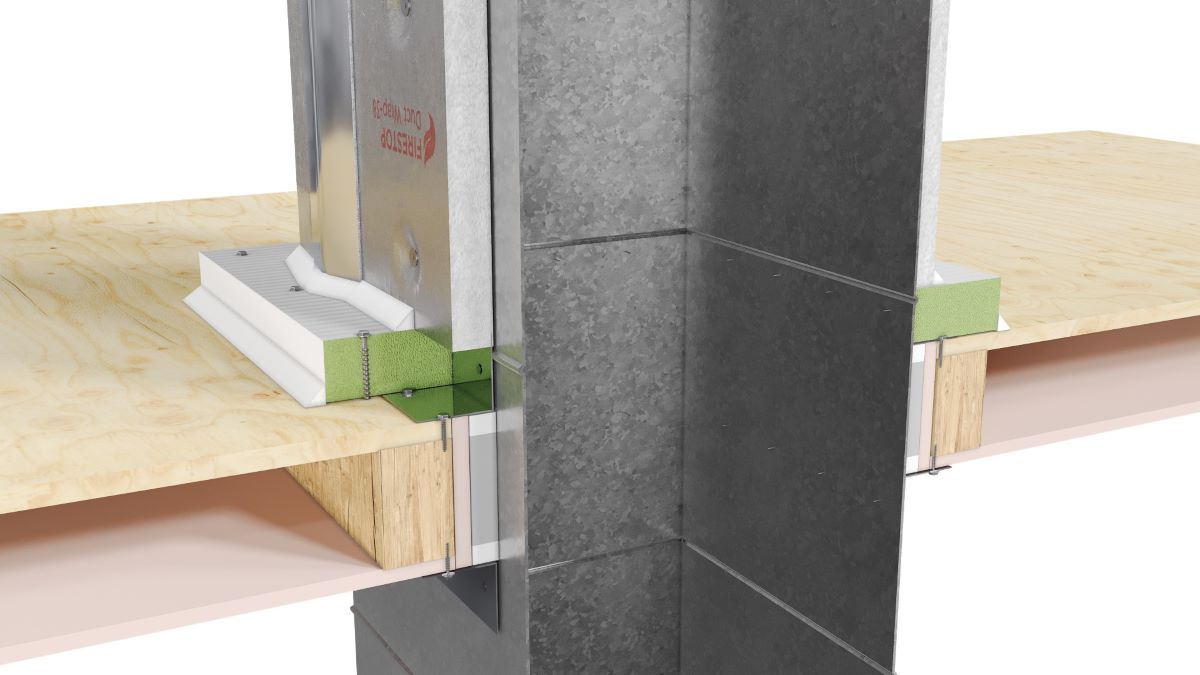

FIRESTOP Duct Wrap-38 Floor-Ceiling Rectangular Duct Internal Fire

System ID FC227

Rectangular duct penetrating a floor/ceiling system (1x16mm plasterboard ceiling). FIRESTOP Duct Wrap-38 with extra layers at penetration. Internal fire. Up to FRR 60/60/60.

View +Spec

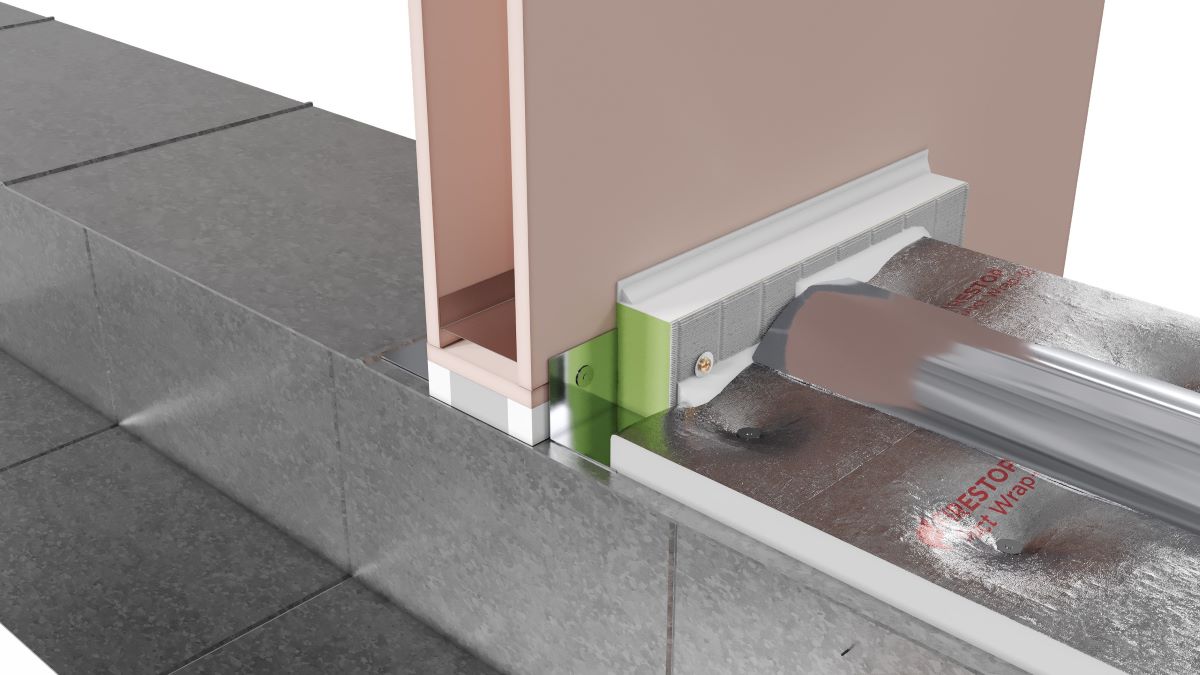

FIRESTOP Duct Wrap-38 Plasterboard Wall Rectangular Duct One-Way Internal Fire

System ID FC222

Rectangular duct penetrating a plasterboard wall (1 x 13mm or greater). One-way system. FIRESTOP Duct Wrap-38 (single or double layer) on non-fire side only. Steel angle both sides. Useful for situations where a grease duct opens to the fire source (kitchen). No wrap or collar required from fire source to the first fire-wall. Internal fire only. Up to FRR 120/120/120.

View +Spec

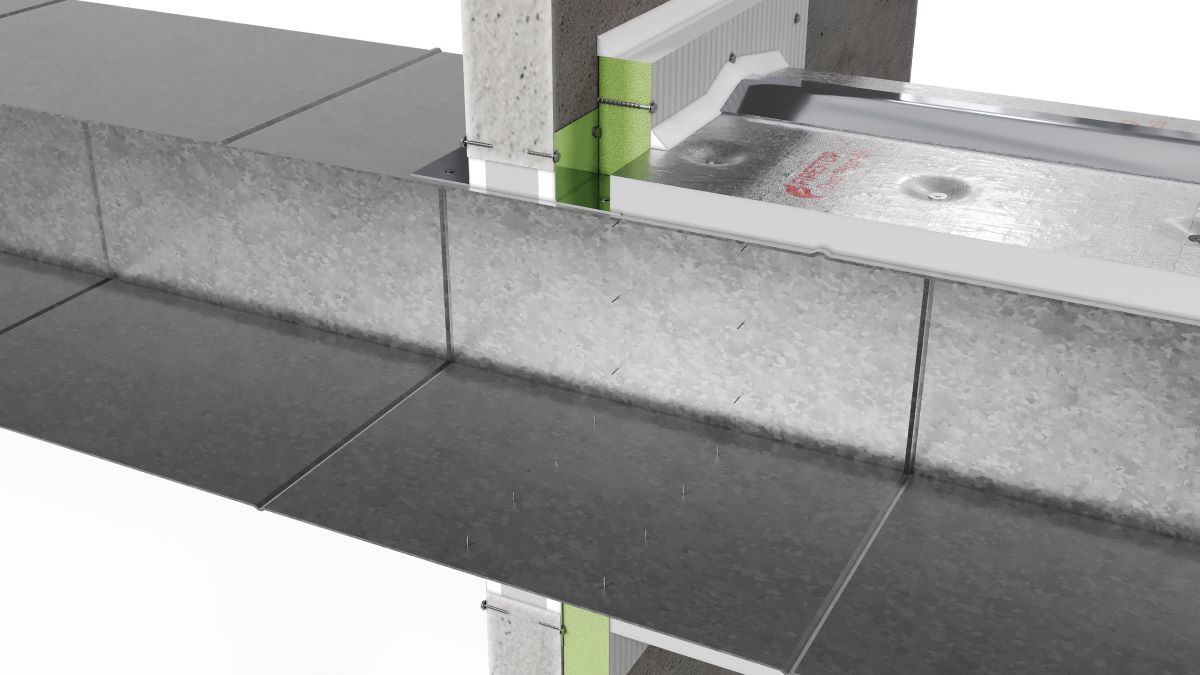

FIRESTOP Duct Wrap-38 Concrete Wall Rectangular Duct One-Way Internal Fire

System ID FC229

Rectangular duct penetrating a concrete or masonry wall, min 90mm thick. One-way system. FIRESTOP Duct Wrap-38 (single or double layer) on non-fire side only. Steel angle both sides. Useful for situations where a grease duct opens to the fire source (kitchen). No wrap or collar required from fire source to the first fire-wall. Internal fire only. Up to FRR 120/120/120.

View +Spec

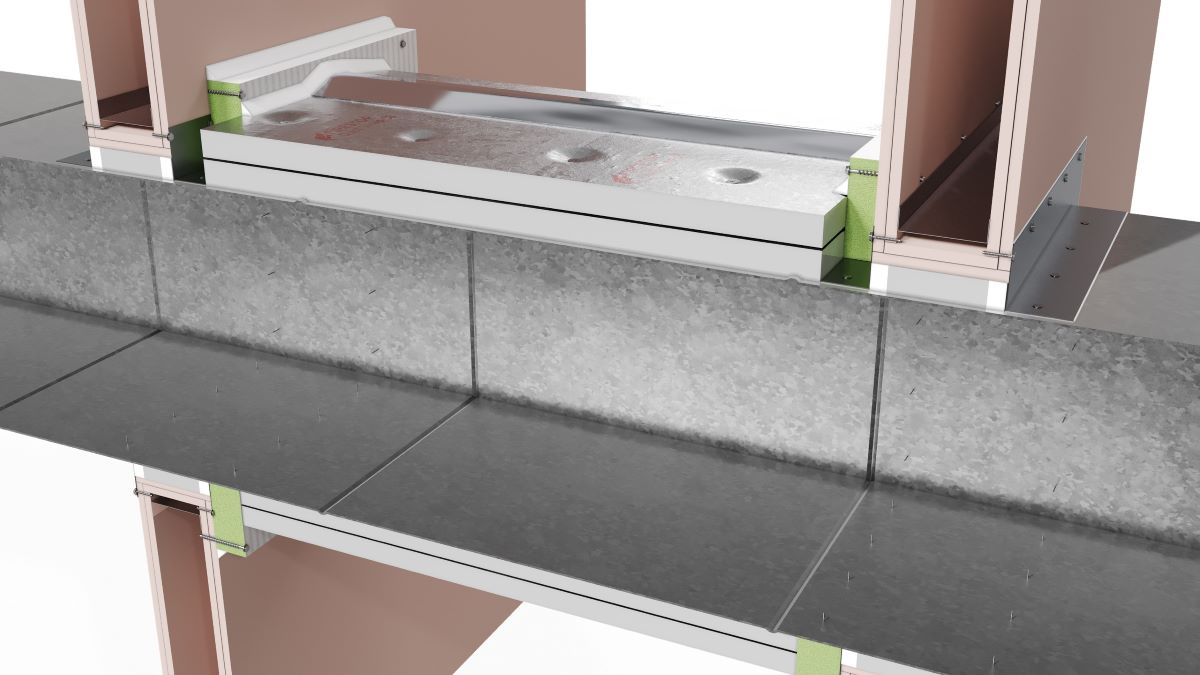

FIRESTOP Duct Wrap-38 Plasterboard Wall Rectangular Duct One-Way External Fire

System ID FC283

Rectangular duct penetrating a plasterboard wall (1 x 13mm or greater). One-way system. FIRESTOP Duct Wrap-38 on fire side only. Steel angle and collar both sides. Useful for situations where an air duct traverses a potential fire source (machine room). No wrap required outside the fire source. External fire only. Up to FRR 120/120/120.

View +Spec

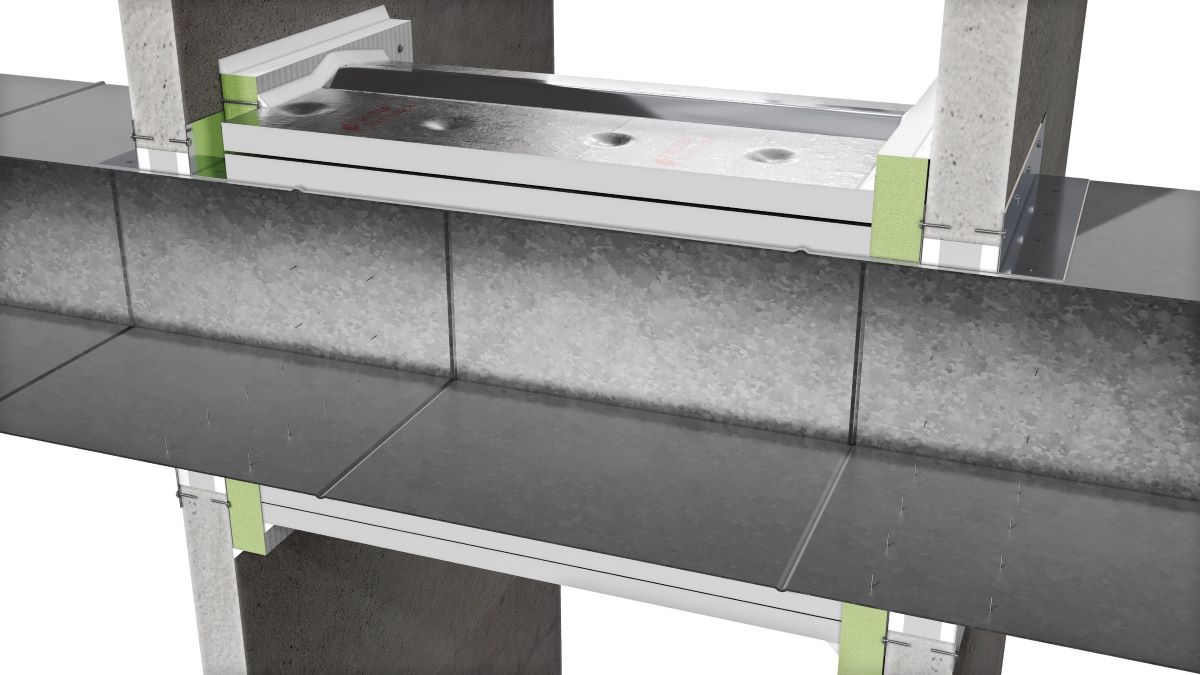

FIRESTOP Duct Wrap-38 Concrete Wall Rectangular Duct One-Way External Fire

System ID FC502

Rectangular duct penetrating a concrete or masonry wall, min 90mm thick. One-way system. FIRESTOP Duct Wrap-38 on fire side only. Steel angle and collar both sides. Useful for situations where an air duct traverses a potential fire source (machine room). No wrap required outside the fire source. External fire only. Up to FRR 120/120/120.

View +Spec
