Protecta FR Board Naked Wall Timber Stud Unlined

System ID FC392

Timber studs at max 1320mm centres - no nogs required - with 60mm thick Protecta FR Board 600 x 1200mm sheets friction-fitted into the stud cavities. Protecta FR Acrylic sealant applied at joints. No lining required so wall can be constructed from one side. FRR -/45/45

Protecta FR Board Naked Wall Timber Stud Unlined 90min

System ID FC729

Timber studs at max 1224mm centres - no nogs required - with 80mm of Protecta FR Board 600 x 1200mm sheets friction-fitted into the stud cavities. Protecta FR Coating applied to all FR Board edges and exposed timber painted with Protecta Interior Paint FR-1. No lining required so wall can be constructed from one side. FRR -/90/60

Protecta FR Board Naked Wall Timber Lined

System ID FC728

Timber studs at 600mm centres - no nogs required - with 60mm thick Protecta FR Board 562 x 1200mm sheets coated on all four edges with Protecta FR Coating friction fitted into the stud cavities. Line both sides with 12mm particleboard and fill end gaps with Protecta FR Acrylic sealant. Finish with coat of Protecta Interior Paint FR-1 to exposed particleboard. FRR -/60/60

Protecta FR Board Naked Wall Steel Stud

System ID FC393

Steel studs at 600mm centres - no nogs required - with 60mm thick Protecta FR Board 600 x 1200mm sheets fitted into the stud cavity and friction fitted to adjacent stud with staggered joints. Protecta FR Acrylic sealant applied at joints. Line both sides with plasterboard (Standard 13.5 mm or better). FRR -/60/60

Protecta FR Board Concrete Wall Blank

System ID FC253

Blank seal in concrete wall up to 1200mm high x unlimited width. Protecta FR Board 60mm 2-s, one sheet friction-fitted anywhere within aperture. Seal edges with FR Acrylic. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/90

Protecta FR Board Roof Space Blank

System ID FC311

Blank seal between top of a concrete or plasterboard wall and underside of above construction substrate, which may be flat, sloping or serrated (e.g. Comflor, Traydec, etc). FR Board friction fitted any position within aperture. Unlimited width x 1200 high. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/90

Protecta FR Board Concrete Wall Single Cable

System ID FC176

Cable (single up to 21mm, any position in board) through a concrete wall min 75mm thick with Protecta FR Board 60mm 2-sided friction fitted anywhere in wall cavity. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/90

Protecta FR Board Concrete Wall Steel, Copper, Alupex Pipes CI, CS

System ID FC178

Metal pipe (interrupted or continuous insulation, copper to 54mm, steel to 325mm, Alupex to 75mm) through a concrete wall min 75mm thick. Protecta FR Board 60mm 2-sided to one side of wall only. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/120

Protecta FR Board Concrete Wall Bare Metal Pipes

System ID FC351

Metal pipes (Uninsulated, Copper to 54mm, Steel to 325mm, Alupex to 75mm) through a concrete wall min 75mm thick. Protecta FR Board 60mm 2-sided to one side of wall only. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/-

Protecta FR Board Concrete Wall Metal Pipe Comb Ins

System ID FC276

Metallic pipes (Copper to 54mm, Alupex to 75mm) with continuous combustible or non-combustible insulation through a concrete, AAC or masonry wall. Single Protecta FR Board 60mm 2-S anywhere in the aperture (max 1200 x 600mm). Protecta FR Collar either side of FR Board. Collar may be oversize to 110mm. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60

Protecta FR Board Concrete Wall Steel Pipe Combustible Insulation

System ID FC363

Metal pipe (continuous combustible or non-combustible insulation, steel to 165mm) through a concrete wall min 75mm thick. Protecta FR Board 60mm 2-sided to one side of wall only or anywhere in between. Protecta FR Pipe Wrap single layer. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/30

Protecta FR Board Concrete Wall Plastic Pipes Collar

System ID FC104

Plastic pipes (PVC, PE, PEX, HDPE, etc) through a concrete wall min 75mm thick, Single Protecta FR Board 60mm 2-S anywhere in the aperture (max 1200 x 600mm) with Protecta FR Collar each side of FR Board. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/60

Protecta FR Boardx2 Concrete Wall Blank

System ID FC252

Blank seal in concrete or masonry wall up to 1200mm high x unlimited width. Wall thickness minimum 75mm. Protecta FR Board 60mm double-sided friction fitted to both sides of wall. Pattress fit option available. Seal edges with FR Acrylic. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/240

Protecta FR Boardx2 Concrete Wall Cables, Conduits

System ID FC310

Cables (single or bundles) and conduits through a concrete or masonry wall min 75mm thick. Protecta FR Board 60mm or 50mm to both sides of wall. Finish with Protecta FR Acrylic sealant. Pattress fit option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/180

Protecta FR Boardx2 Concrete Wall Cable Trays

System ID FC175

Cable trays or conduit through a concrete wall min 75mm thick. Protecta FR Board 60mm or 50mm to both sides of wall. Finish with Protecta FR Acrylic sealant. Pattress fit option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/180

Protecta FR Boardx2 Concrete Wall Metal Pipe Interrupted

System ID FC177

Metal pipes with interrupted insulation (Steel to 219mm, Copper to 54mm, Alupex to 16mm) through a concrete wall min 75mm thick.. Protecta FR Board 60mm or 50mm to both sides of wall. Finish with Protecta FR Acrylic. Unlimited width x 1200mm high. Pattress fit option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/180

Protecta FR Boardx2 Concrete Wall Metal Pipe Bare

System ID FC569

Metal pipes with no insulation (Steel to 324mm, Copper to 54mm, Alupex to 75mm) through a concrete wall min 75mm thick. Protecta FR Board 60mm or 50mm to both sides of wall. Finish with Protecta FR Acrylic. Unlimited width x 1200mm high. Pattress fit option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/-

Protecta FR Boardx2 Concrete Wall Metal Pipe Continuous Ins

System ID FC275

Metal pipes (Steel up to 324mm, Copper up to 54mm, Alupex up to 75mm, continuous sustained insulation) through a concrete wall min 75mm thick. Protecta FR Board 60mm or 50mm to both sides of wall. Pattress fit option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/180

Protecta FR Board Concrete Wall Metal Pipe Combustible Insulation

System ID FC234

Metal pipes with continuous combustible or non-combustible insulation (Steel to 324mm, Copper to 54mm, Alupex to 75mm) through a concrete wall min 75mm thick. Protecta FR Board 50mm and Protecta FR Wrap to each side of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR - /120/120

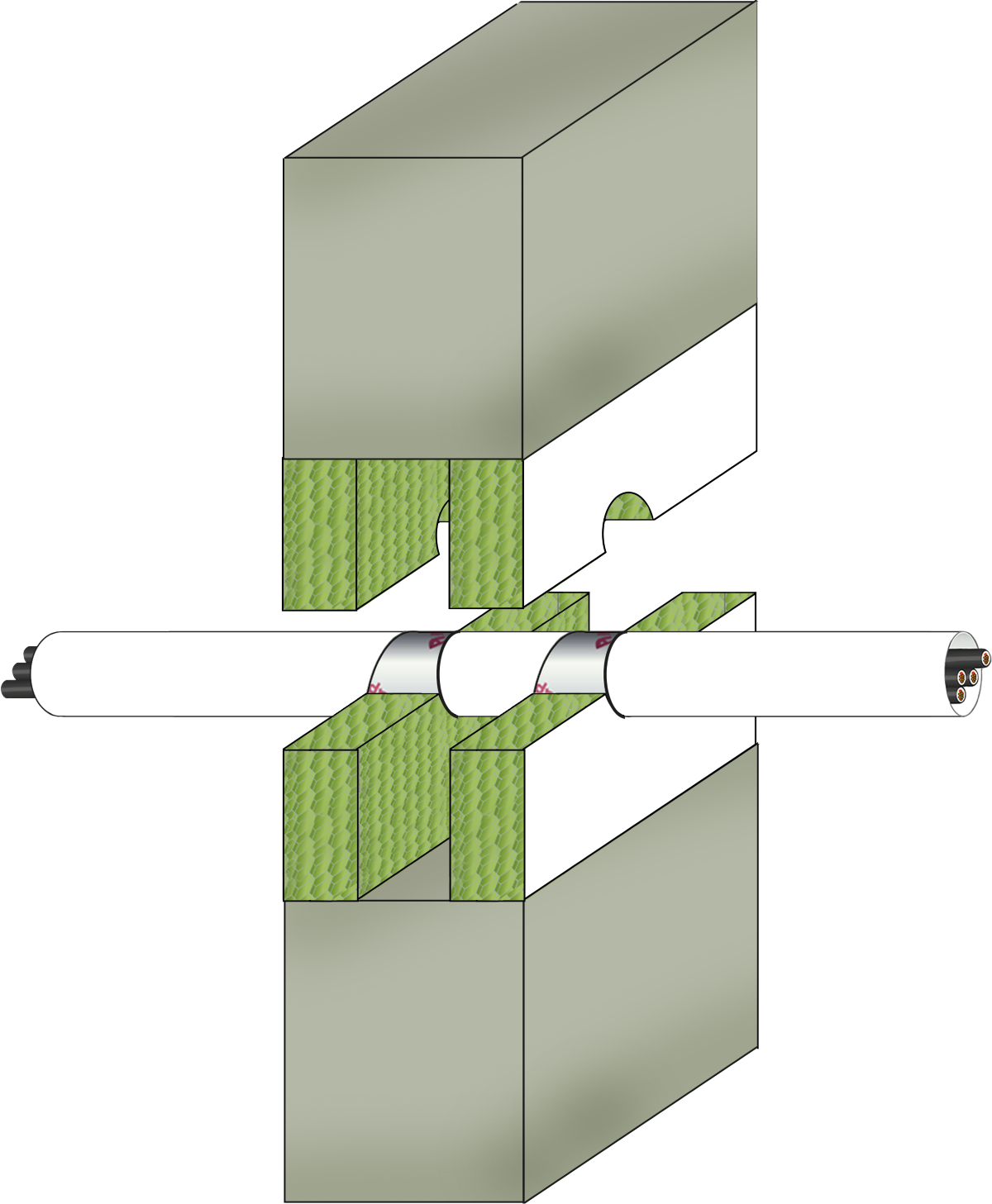

Protecta FR Board Concrete Wall Conduits (Single or Bundle)

System ID FC102

Plastic conduits (PVC, PE, PE-HD, PEX, PP, PP-R) up to 110mm fully or partially filled with cables up to 14mm diam or smaller conduits in bundles up to 110mm diam through a concrete, AAC or masonry wall min 75mm thick. Protecta FR Board 50mm 1-S each side. Double layer Protecta FR Pipe Wrap around conduit each side of wall. Finish with Protecta FR Acrylic sealant. Pattress option. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/90

Protecta FR Boardx2 and Wrap Concrete Wall Plastic Pipes

System ID FC570

Plastic pipes (PVC-U, HDPE, PEX, PP, PPR and specialty acoustic and thermal) and bundles of mixed 32mm plastic pipes through a concrete wall min thickness 75mm. Protecta FR Board 60mm or 50mm and Protecta FR Wrap to both sides of wall. Protecta FR Acrylic to finish. Pattress fit option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/240

Protecta FR Board Concrete Wall Plastic Pipes Combustible Insulation

System ID FC103

Plastic pipes (PP, PE, PEX, PE-HD, PP-R) up to 160mm diam with combustible Elastomeric or PE Foam insulation (9 - 50mm thick) or non-combustible insulation through a concrete, AAC or masonry wall min 75mm thick. Protecta FR Board 50mm 1-S each side. Protecta FR Pipe Wrap around pipe insulation each side of wall. Finish with Protecta FR Acrylic sealant. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60.

Protecta FR Board Concrete Wall Blank Protruding

System ID FC254

Blank seal in concrete wall up to 600 x 600mm. Protecta FR Board 60mm double-sided on each side of wall, protruding up to 30mm. Rating -/240/180. Seal edges and exposed faces with Protecta FR Acrylic.

Protecta FR Board Concrete Wall Blank Pattress Fit

System ID FC255

Blank seal in concrete wall up to 600 x 600mm. Protecta FR Board 60mm 2-S on each side of wall, pattress fixed 50mm overlap, with Protecta FR Acrylic sealant. Max FRR -/240/180.

Protecta FR Board Concrete Wall Cables & Trays Pattress Fit

System ID FC181

Cables (single, bundles or cable trays) through a concrete wall. Protecta FR Board 60mm 2-sided to both external faces of wall, pattress fixed, with Protecta FR Acrylic sealant. Max FRR -/240/240

Protecta FR Board Concrete Wall Mixed Services

System ID FC408

Protecta FR Board and Protecta EX Mortar may be used to provide a penetration seal for mixed services within the same aperture. Services can include cables, cable trays, metallic pipes, composite pipes and plastic pipes, with and without insulation.

Protecta FR Board x2 Concrete Floor Blank

System ID FC256

Blank seal in 150mm concrete floor up to 2400 x 1200mm. Two layers Protecta FR Board 60mm double-sided with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/180/180

Protecta FR Board x2 Concrete Floor Cables & Trays

System ID FC182

Cables (single, bundles or cable trays) or PVC Conduit through a 150mm concrete floor. Two layers Protecta FR Board 60mm 2-S with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Concrete Floor Blank

System ID FC257

Blank seal in 100mm concrete floor up to 2400 x 1200mm (or linear gap up to 800mm). One layer Protecta FR Board 60mm double-sided anywhere in aperture. Seal edges Protecta FR Acrylic. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/90

Protecta FR Board Concrete Floor Cables & Trays

System ID FC183

Cables (single, bundled or cable trays) and conduit through a 100mm concrete floor. One Protecta FR Board 60mm 2-sided positioned anywhere in floor. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/90/30

Protecta FR Board x2 Concrete Floor Steel Pipe CI

System ID FC185

Steel pipe (interrupted insulation, mild or stainless steel up to 219mm) through a concrete floor min 120mm. Two layers of Protecta FR Board 60mm 2-sided fitted together anywhere within the floor. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/240

Protecta FR Board x2 Concrete Floor Steel Pipe Bare

System ID FC573

Steel pipe (no insulation, mild or stainless steel up to 219mm) through a concrete floor min 120mm. Two layers of Protecta FR Board 60mm 2-sided fitted together anywhere within the floor. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/-

Protecta FR Board Concrete Floor Steel, Copper, PEX/AL/HDPE Pipe Interrupted Ins

System ID FC186

Metallic pipe (interrupted insulation, copper to 54mm, steel to 219mm, PEX/AL/HDPE to 75mm) through a 100mm concrete floor. One layer Protecta FR Board 60mm 2-sided anywhere in floor space. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/240

Protecta FR Board Concrete Floor Steel, Copper, PEX/AL/HDPE Pipe Bare

System ID FC574

Metallic pipe (no insulation, copper to 54mm, steel to 219mm, PEX/AL/HDPE to 75mm) through a 100mm concrete floor. One layer Protecta FR Board 60mm 2-sided anywhere in floor space. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/-

Protecta FR Board-Pipe Wrap Concrete Floor Combustible/Non-combustible Ins

System ID FC167

Metal pipes with continuous combustible or non-combustible insulation (steel 40mm-165mm, copper to 54mm, Alupex to 75mm) through a 120mm concrete floor. Two Protecta FR Boards 60mm 2-sided fitted anywhere in the aperture, together or separate. Protecta FR Pipe Wrap 50mm fitted at bottom of seal. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/240/120

Protecta FR Board Concrete Floor Plastic Pipe with Wrap

System ID FC165

Plastic pipes (PVC-U to110mm) through a 100mm concrete floor. Protecta FR Board 2-sided (50mm or 60mm) in middle of floor. Protecta FR Pipe Wrap 50mm double layer. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/90/90

Protecta FR Board Concrete Floor Mixed Services

System ID FC572

Protecta FR Board and Protecta EX Mortar may be used to provide a penetration seal for mixed services within the same aperture. Services can include cables, cable trays, metallic pipes, composite pipes and plastic pipes, with and without insulation.

Protecta FR Board Timber Floor Linear Gap

System ID FC549

Linear gap in solid timber or CLT floor (up to 400mm wide, unlimited length). Protector FR Board friction fitted into gap and second FR Board pattress fitted to soffit. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/90/90

Protecta FR Board Timber Floor Cables & Trays

System ID FC576

Cables (single, bundled or cable trays) and conduit through a 150mm solid timber or CLT floor. One Protecta FR Board 50mm or 60mm friction fitted within aperture and second FR Board overlapping the aperture by 100mm all sides. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/90/60

Protecta FR Board Timber Floor Steel, Copper, Alupex Pipe Interrupted Insulation

System ID FC577

Metallic pipe (interrupted insulation, copper to 54mm, steel to 273mm, Alupex to 75mm) through a 150mm solid timber or CLT floor. One layer Protecta FR Board 50mm or 60mm within the aperture with a second FR Board overlapping 100mm. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/90/90

Protecta FR Board Timber Floor Steel, Copper, Alupex Pipe Bare

System ID FC578

Metallic pipe (bare - no insulation, copper to 54mm, steel to 273mm, Alupex to 75mm) through a 150mm solid timber or CLT floor. One layer Protecta FR Board 50mm or 60mm within the aperture with a second FR Board overlapping 100mm. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/90/-

Protecta FR Board Plasterboard Wall Blank or Linear Gap

System ID FC258

Blank or linear gap seal in plasterboard wall up to 1200mm high x unlimited width. One layer Protecta FR Board 50mm 1-S to each side of wall. Minimum single layer 13mm plasterboard. Seal with Protecta FR Acrylic. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Plasterboard Wall Linear Gap to Rigid Substrate

System ID FC601

Blank or linear gap seal up to 1200mm high x unlimited width from plasterboard wall to rigid substrate (concrete, AAC, masonry, steel, etc). One layer Protecta FR Board 50mm 1-S to each side of wall. Minimum single layer 13mm plasterboard. Seal with Protecta FR Acrylic. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Plasterboard Wall Cables

System ID FC580

Cables, single or bundled through a plasterboard wall, including single layer plasterboard walls. Protecta FR Board 50mm 1-S (or 60mm 2-S) to both sides of wall. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60

Protecta FR Board Plasterboard Wall Cables & Trays

System ID FC188

Cables and conduits on trays through a plasterboard wall, including single layer plasterboard walls. Protecta FR Board 50mm 1-S (or 60mm 2-S) to both sides of wall. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60

Protecta FR Board Plasterboard Wall CS Metal Pipes

System ID FC272

Metal pipes (continuous non-combustible insulation, steel to 324mm, copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Board 50mm 1-S to each side of wall. Pattress fixed option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Plasterboard Wall Metal Pipe Combustible/Non-combustible Insulation

System ID FC274

Metal pipes with continuous combustible or non-combustible insulation (steel to 324mm, copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Board 50mm 1-S each side. Protecta FR Pipe Wrap around pipe insulation. Finish with Protecta FR Acrylic sealant. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Plasterboard Wall Metal Pipe Interrupted Insulation

System ID FC189

Metal pipes with insulated interrupted (steel to 219mm, copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Board 50mm 1-sided to both sides of wall. Finish with Protecta FR Acrylic. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Plasterboard Wall Metal Pipes Bare

System ID FC313

Metallic pipes (un-insulated, steel to 324mm, copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Board 50mm 1-sided to both sides of wall. Finish with Protecta FR Acrylic. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/-

Protecta FR Board Plasterboard Wall Conduits (Single or Bundle)

System ID FC559

Plastic conduits (PVC, PE, PE-HD, PEX, PP, PP-R) up to 110mm fully or partially filled with cables up to 14mm diam or smaller conduits in bundles up to 110mm diam through a plasterboard wall. Protecta FR Board 50mm 1-S each side. Double layer Protecta FR Pipe Wrap around conduit each side of wall. Finish with Protecta FR Acrylic sealant. Pattress option. Smoke-safe. Max FRR -/120/90

Protecta FR Board Plasterboard Wall Plastic Pipes

System ID FC581

Plastic pipes (PVC, PE, PE-HD, PEX, PP, PP-R up to 400mm) or composite pipes (Aquatherm, Uponor Decibel, etc up to 160mm) through a plasterboard wall. Protecta FR Board 50mm or 60mm each side. Protecta FR Pipe Wrap around pipes each side of wall. Finish with Protecta FR Acrylic sealant. Pattress option. Smoke-safe. Max FRR -/120/120

Protecta FR Board Plasterboard Wall Plastic Pipes Combustible/Non-combustible Insulation

System ID FC364

Plastic pipes (PP, PE, PEX, PE-HD, PP-R) up to 160mm diam with combustible Elastomeric or PE Foam insulation (9 - 50mm thick) or non-combustible insulation through a plasterboard wall. Protecta FR Board 50mm 1-S each side. Protecta FR Pipe Wrap around pipe insulation each side of wall. Finish with Protecta FR Acrylic sealant. Pattress fix option available. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60

Protecta FR Board Plasterboard Wall Metal Pipes Insulated

System ID FC171

Metal pipes with stone wool continuous insulation (Steel to 324mm, copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Board 60mm 2-sided to either side of wall or anywhere inbetween. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/90/60

Protecta FR Board Plasterboard Wall Plastic Pipe Collar

System ID FC172

Plastic pipes (PVC, HDPE, PEX, PP, PP-R, etc all to 160mm) through a plasterboard wall. Protecta FR Board 60mm 2-sided to either side of the wall or anywhere inbetween. Protecta FR Collar to both sides of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/60

Protecta FR Board Plasterboard Wall Metal Pipe Combustible or Non-combustible Insulation

System ID FC170

Metallic pipes with continuous combustible or non-combustible insulation (Copper to 54mm, Alupex to 75mm) through a plasterboard wall. Protecta FR Collar to both sides of the wall. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60

Protecta FR Board Plasterboard Wall C-Purlin

System ID FC743

A system designed to protect C-Purlins installed in a fire-rated plasterboard, concrete or masonry wall, using Protecta FR Board & Protecta FR Acrylic.
Tested in NZ to AS1530.4 – 2014 in a local impartial IANZ accredited 3rd party laboratory to max FRR -/120/120.
Tested configurations: 3-sided with purlin against a concrete soffit and 4-sided.
Tested C-Purlin sizes 200/12 and 400/20.

Protecta FR Board Plasterboard Wall I-Beam

System ID FC783

Plasterboard, concrete or masonry walls penetrated by an I-beam. Pattress fitted Protecta FR Board with Protecta FR Acrylic.
Tested in NZ to AS1530.4 – 2014 by an impartial IANZ accredited 3rd party laboratory to max FRR -/120/120
Tested configurations: 3-sided to concrete soffit, including wrapping and 4-sided with no wrapping.
Tested beam was 250UC89.5 (approx 255mm x 260mm)

Protecta FR Board Plasterboard Wall Mixed Services

System ID FC409

Protecta FR Board and Protecta EX Mortar may be used to provide a penetration seal for mixed services within the same aperture. Services can include cables, cable trays, metallic pipes, composite pipes and plastic pipes, with and without insulation.

Protecta FR Board Timber Wall Blank or Gap Seal

System ID FC166

Blank or linear gap seal in a solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress fitted to each side of wall oversailing aperture by 100mm. Fix with 100mm wood screws and penny washers. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Timber Wall Cables

System ID FC586

Cables, single or bundled through a 100mm solid timber or CLT wall. Protecta FR Board 50mm 1-S (or 60mm 2-S) pattress-fitted to both sides of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/60/60

Protecta FR Board Timber Wall Cables & Trays

System ID FC587

Cables and conduits on trays through a 100mm solid timber or CLT walls. Protecta FR Board 50mm 1-S (or 60mm 2-S) pattress-fitted to both sides of wall. Smoke-safe (<0.1m3/h smoke leakage at 200Pa). Max FRR -/120/90

Protecta FR Board Timber Wall CS Metal Pipes

System ID FC588

Metal pipes with continuous non-combustible insulation (steel to 324mm, copper to 54mm, Alupex to 75mm) through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted to each side of wall. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Timber Wall Metal Pipe Combustible or Non-combustible Insulation

System ID FC589

Metal pipes with continuous combustible or non-combustible insulation (steel to 324mm, copper to 54mm, Alupex to 75mm) through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted to each side. Protecta FR Pipe Wrap around pipe insulation each side of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h leakage). Max FRR -/120/120

Protecta FR Board Timber Wall Metal Pipe Interrupted Insulation

System ID FC590

Metal pipes with insulated interrupted (steel to 219mm, copper to 54mm, Alupex to 75mm) through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted to both sides of wall. Finish with Protecta FR Acrylic. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Timber Wall Metal Pipes Bare

System ID FC591

Metallic pipes (un-insulated, steel to 324mm, copper to 54mm, Alupex to 75mm) through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted to both sides of wall. Finish with Protecta FR Acrylic. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/30

Protecta FR Board Timber Wall Conduits (Single or Bundle)

System ID FC592

Plastic conduits (PVC, PE, PE-HD, PEX, PP, PP-R) up to 110mm fully or partially filled with cables up to 14mm diam or smaller conduits in bundles up to 110mm diam through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted each side. Double layer Protecta FR Pipe Wrap around conduit each side of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe. Max FRR -/120/90

Protecta FR Board Timber Wall Plastic Pipes

System ID FC593

Plastic pipes (PVC, PE, PE-HD, PEX, PP, PP-R up to 400mm) or composite pipes (Aquatherm, Uponor Decibel, etc up to 160mm) through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted each side. Protecta FR Pipe Wrap around pipes each side of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe (<0.1m³/h smoke leakage at 200Pa). Max FRR -/120/120

Protecta FR Board Timber Wall Plastic Pipes Combustible or Non-combustible Insulation

System ID FC594

Plastic pipes (PP, PE, PEX, PE-HD, PP-R) up to 160mm diam with continuous combustible Elastomeric or PE Foam insulation (9 - 50mm thick) or non-combustible insulation through a 100mm solid timber or CLT wall. Protecta FR Board 50mm or 60mm pattress-fitted each side. Protecta FR Pipe Wrap around pipe insulation each side of wall. Finish with Protecta FR Acrylic sealant. Smoke-safe. Max FRR -/60/60
