Allproof Fire Collar Concrete Floor Plastic Pipe

System ID FC732

PVC, PVC with socket, HDPE, PP-R (Aquatherm), PP-MD (Acoustic), PEX, PB or PEX/Al/PEX pipe up to 225mm diameter through a concrete slab floor (from 70mm). Allproof fire collar fixed to underside of slab. Max FRR -/240/180

Allproof Fire Collar Concrete Wall Plastic Pipe

System ID FC777

PVC, HDPE, PP-R (Aquatherm) pipe up to 150mm diameter through a concrete wall. Allproof fire collar fixed to both sides of the wall. Max FRR -/180/180

Allproof Fire Collar Concrete Floor Plastic Floor Waste

System ID FC629

PVC (with or without socket) or HDPE floor waste up to 100mm diameter through a concrete or AAC floor slab (min 70mm). Allproof fire collar fixed to underside of slab. Max FRR -/180/120

Allproof Fire Collar Rib and Timber Concrete Floor Plastic Pipe

System ID FC690

PVC, PEX, PB, PEX/AL/PE, PP-R pipes up to 100mm diameter through a concrete rib and timber infill floor (from 70mm). Allproof fire collar fixed to underside of slab. Max FRR -/120/120

Allproof Fire Collar Concrete Floor Waste Timber Infill

System ID FC734

PVC floor waste up to 100mm diameter through a concrete rib and timber infill floor (from 70mm). Allproof fire collar fixed to underside of slab. Max FRR -/120/120

Allproof Fire Collar Concrete Floor Hollow Core Plastic Pipe

System ID FC730

PVC, HDPE, PEX, PP-R, PP-MD pipes through a 150mm hollow core concrete floor. Allproof fire collar fixed to underside of slab. Max FRR -/90/90

Allproof Fire Collar Concrete Floor Hollow Core Plastic Floor Waste

System ID FC731

PVC plastic floor waste up to 100mm through a 150mm hollow core concrete floor. Allproof fire collar fixed to underside of slab. Max FRR -/90/90

Allproof Fire Collar CLT Floor Plastic Pipe

System ID FC221

PVC (up to 100mm) and PEX (up to 25mm) pipes through a CLT floor (from 105mm). Allproof fire collar fixed to underside of floor. Max FRR -/60/60.

Allproof Fire Collar Composite Floor Plastic Pipe

System ID FC220

PVC (up to 100mm), PEX (16mm), PP-R (32mm) pipes through a composite floor (from 70mm). Allproof fire collar fixed to underside of slab. Max FRR -/120/120

Allproof Fire Collar Ceiling-Floor Cables

System ID FC631

Cables and air-con services through a 2x13mm ceiling and particleboard floor above. Allproof Fire Collar and Protecta FR Acrylic sealant. Max FRR -/90/90

Allproof Fire Collar Ceiling-Floor Plastic Pipe

System ID FC735

Plastic pipe (PVC, PVC with socket, PP-R, PEX, Polybute) through a 2x13mm ceiling and particleboard floor above. Allproof Fire Collar and intumescent fire sealant. Max FRR -/90/90

Allproof Fire Collar Plasterboard Ceiling PVC Floor Waste

System ID FC736

PVC 100mm floor waste through a 2x13mm ceiling and particleboard floor above. Allproof Fire Collar and intumescent fire sealant. Max FRR -/90/-

Allproof Fire Collar Plasterboard Wall (Single) Plastic Pipe

System ID FC737

Plastic pipes of all types (PVC, PE, PP, PEX, etc) through a single layer 13mm, 16mm or 19mm plasterboard wall. Allproof Fire Collar and intumescent sealant to both sides of the wall. Max FRR -/120/120

Allproof Fire Collar Plasterboard Wall (Single) Plastic Pipe In-Wall

System ID FC738

Plastic pipes of all types (PVC, PE, PP, PEX, etc) through a single layer 13mm, 16mm or 19mm plasterboard wall. Allproof Fire Collar inserted inside the wall to both sides of the wall. Max FRR -/120/90

Allproof Fire Collar Plasterboard Wall (Double) Plastic Pipe

System ID FC742

Plastic pipes of all types (PVC, PE, PP, PEX, etc) through a double layer 13mm or 16mm plasterboard wall. Allproof Fire Collar and intumescent sealant to both sides of the wall. Max FRR -/120/120

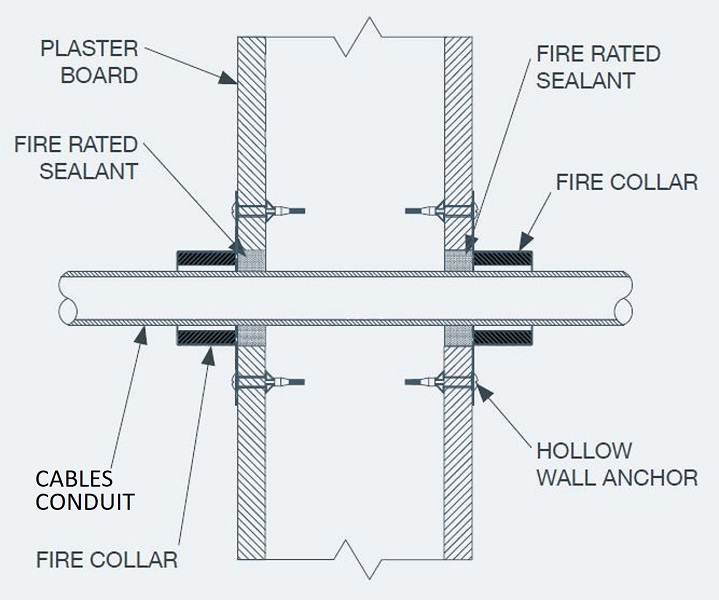

Allproof Fire Collar Plasterboard Wall Cables

System ID FC632

Cables, conduits and air-con services through a single layer 13mm plasterboard wall. Allproof Fire Collar and MAS310 fire sealant to both sides of the wall. Max FRR -/60/60

Allproof Fire Collar Inside Plasterboard Wall Pair Coil

System ID FC633

Air-con services (pair coil, TPS cable, Flexi Hose) through a single layer 13mm plasterboard wall with Allproof Fire Collar inside the wall cavity. Max FRR -/60/60

Allproof Fire Collar Concrete or Speedpanel Wall Plastic Pipe

System ID FC750

Plastic pipes of all types (PVC, PE, PP, PEX, etc) through a concrete or Speedpanel 78mm wall. Allproof Fire Collar and intumescent sealant to both sides of the wall. Max FRR -/120/120

Allproof Fire Collar Speedpanel with Plasterboard Plastic Pipe

System ID FC751

Plastic pipes (PVC, PEX, PEX/AL/PEX) through a Speedpanel 78mm wall with plasterboard lining or patch. Allproof Fire Collar and intumescent fire sealant to both sides of the wall. Max FRR -/120/120

Allproof Fire Collar Hebel Wall with Plasterboard Plastic Pipe

System ID FC752

Plastic pipes (PVC, PEX, PEX/AL/PEX) through a Hebel Powerpanel 75mm wall with plasterboard lining or patch. Allproof Fire Collar and intumescent fire sealant to both sides of the wall. Max FRR -/120/120

Allproof Fire Collar Concrete Floor Timber Infill Cables Pair Coil

System ID FC771

Cables and air-con services through a 70mm concrete floor with 25mm timber infill. Allproof Fire Collar fixed through timber infill. Max FRR -/90/90

Allproof Fire Collar CLT Floor Cables Pair Coils

System ID FC772

Cables and Pair Coils through a CLT floor (from 105mm). Allproof fire collar fixed to underside of floor. Max FRR -/60/60

Allproof Fire Collar Concrete Floor Cables

System ID FC773

Cables, including fibre optic, through a 70mm concrete floor. Allproof Fire Collar beneath the floor. Max FRR -/60/60
